LCS-030B4B: 3W High Power Blue LED 20mm Starboard (140 Degree)

HIGHLIGHTS

APPLICATIONS

·        High Lumens Blue (465nm) LED Emitter

·        Up to 700mA Drive Current

·        Low Thermal Resistance

·        RoHs Compliant Part

·        Sun Light Viewable

·        Channel and Backlighting

·        Indoor and Outdoor Lighting





Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

Power

3

W

DC Forward Current

700

mA

Peak Pulse Forward Current (1)

1000

mA

Operating Temperature

-30 to +100

0C

Storage Temperature

-40 to +100

0C

Junction Temperature

135

0C

Lead Soldering Temperature

2600C for 5 Seconds Max. (1.6mm from Body)



(1) Pulse conditions of 1/10 duty and 0.1msec width





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

DC Forward Voltage

VF

IF = 700mA

3.0

3.6

V

Luminous Intensity

IV

IF = 350mA

20



40



Luminous Intensity

IV

IF = 700mA

35



45

lm

Viewing Angle

2q1/2

IF = 700mA

140

Deg.

Dominant Wavelength

lD

IF = 700mA

460

465

nm

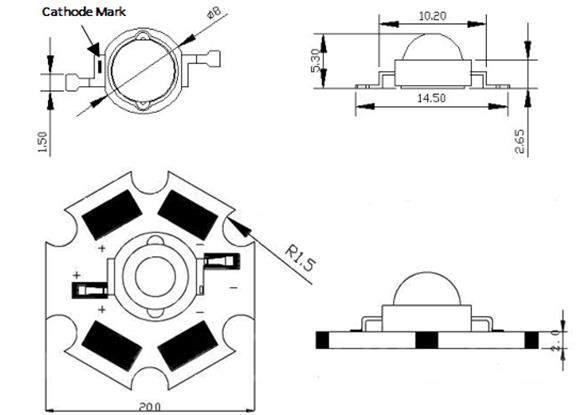

PACKAGE DIMENSIONS
