NP804TRY4D: 8mm Power Red & Yellow LED Lamp
LC LED 8mm High Power Red and Yellow LED 55 Degree
|
PRODUCT DESCRIPTION |
|
|
(1) Bicolor Power
LED in Standard Thru-Hole 8mm Package |
(4) Enlarge Lead Frame for Better Thermal Dissipation |
|
(2) High Power Red
& Yellow LED Lamp |
(5) No Additional Heat Sink Needed |
|
(3)
RoHs Compliant Part |
(6) Design for High Lumens Applications |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
150 |
mA |
|
Peak Pulse Forward Current (1) |
150 |
mA |
|
Operating Temperature |
-40
to +85 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 6 seconds |
|
(1)
Pulse conditions of 1/10 duty and 10msec
width
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage (Red) |
VF |
IF
= 150mA |
2.0 |
|
2.4 |
V |
|
Forward
Voltage (Yellow) |
VF |
IF
= 150mA |
2.0 |
|
2.4 |
V |
|
Reverse
Voltage |
VR |
IR
= 20mA |
|
|
5 |
V |
|
Dominant
Wavelength (Red) |
lD |
IF
= 150mA |
625 |
|
635 |
nm |
|
Dominant
Wavelength (Yellow) |
lD |
IF
= 150mA |
589 |
|
595 |
nm |
|
Viewing Angle |
2q1/2 |
IF
= 150mA |
|
55 |
|
Deg. |
|
Luminous
Intensity (Red) |
IV |
IF
= 150mA |
20,000 |
mcd |
||
|
Luminous
Intensity (Yellow) |
IV |
IF
= 150mA |
17,000 |
mcd |

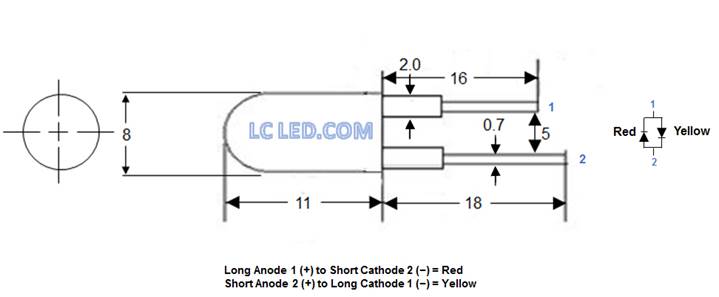

DEVICE DRAWING
|
LC LED Corporation |
