P504JPT4D: 3W 5mm Yellow LED Emitter Lamp

LC LED 3 Watt 5mm LED Diode in Water Clear Len 55 Degrees









Electro-optical Characteristics (Ta = 250C)

PART NUMBER

DICE
MATERIAL
(COLOR)

CCT
WAVELENGTH

Viewing
Angle

VF (V)

VF (V)

LUMINOUS
INTENSITY
(IF = 350mA)

LUMINOUS
INTENSITY
(IF = 700mA)

MIN.

MAX.

MIN.
(mcd)

MAX.
(mcd)

MIN.
(lumen)

MAX.
(lumen)

P504JPT4D

InGaN
Yellow

Yellow

55

2.8

3.3

75,000

93,000

140

160





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

Power Dissipation

3000

mW

Peak Current (1)

1000

mA

Forward Current (DC)

700

mA

Reverse Voltage

5

V

ESD Sensitivity

4000

V

LED Junction Temperature (2)

125

oC

Operating Temperature

-40 to +110

oC

Storage Temperature

-40 to +120

oC

1) Max. pulse conditions of 1/10 duty, 0.1msec max. pulse width

2) It is recommended that the temperature of Lead Frame not be higher than 90 ºC.

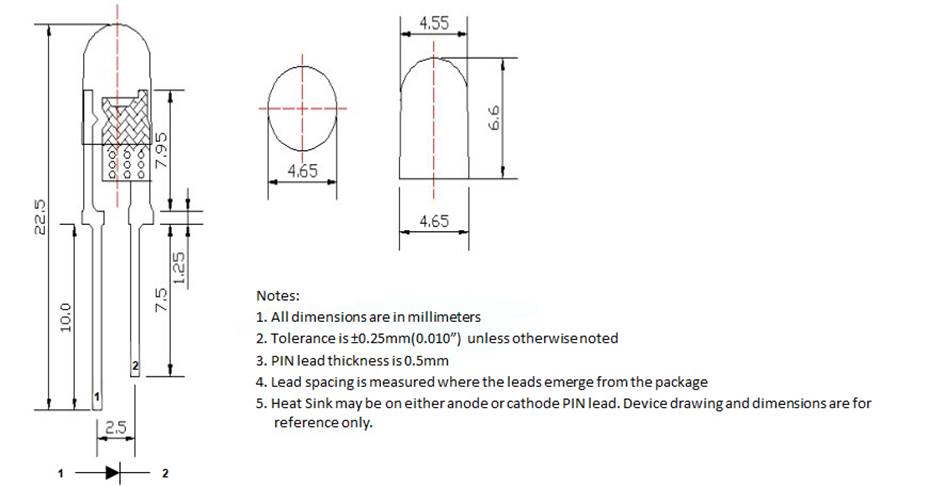

DEVICE DRAWING

A close up of a map

Description automatically generated

LC LED Corporation
