LC LED-N300TGY4D: 3mm Green & Yellow LED Lamp (110 Degree)

LC LED 3mm Flat Top Green and Yellow LED Water Clear (Common Anode)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Moisture & UV Resistance Epoxy Len

(2) Super Bright Bi-Color 3mm Green & Yellow LED Lamp

(5)  Sun Light Viewable LED Lamp

(3) Excellent color mixing characteristics

(6)  Rugged design suitable for both indoor & outdoor use





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current

30

mA

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 3 seconds
(4.0mm or 0.157 inch from Body)

(1)     Pulse width of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage (Green)

VF

IF = 20mA

3.0



3.6

V

Forward Voltage (Yellow)

VF

IF = 20mA

1.8



2.1

V

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength (Green)

lD

IF = 20mA

520



535

nm

Dominant Wavelength (Yellow)

lD

IF = 20mA

590



595

nm

Viewing Angle

2q1/2

IF = 20mA



110



Deg.

Luminous Intensity (Green)

IV

IF = 20mA

1,000



3,000

mcd

Luminous Intensity (Yellow)

IV

IF = 20mA

800



1,500

mcd

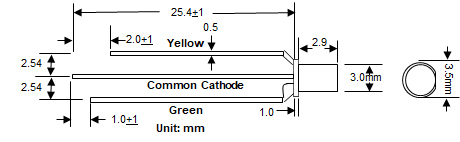

DEVICE DRAWING
