LC LED-250RGB4D:  2mm x 5mm Rectangular RGB LED Lamp (Cathode)

LC LED 2mm x 5mm Rectangular RGB 110 Degree Clear LED Lamp

PRODUCT DESCRIPTION



(1) RoHS Compliant Part

(4) Moisture & UV Resistance Epoxy Len

(2) Super Bright Tri-Color Rectangular Red, Green & Blue LED

(5) Sun Light Viewable LED Lamp

(3) Excellent color mixing characteristics

(6) Rugged design suitable for both indoor & outdoor use





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current

30

mA

Operating Temperature

-40 to +100

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1)     Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage (Red)

VF

IF = 20mA

1.7



2.1

V

Forward Voltage (Green)

VF

IF = 20mA

3.0



3.3

V

Forward Voltage (Blue)

VF

IF = 20mA

3.0



3.3

V

Dominant Wavelength (Red)

lD

IF = 20mA



630



nm

Dominant Wavelength (Green)

lD

IF = 20mA



525



nm

Dominant Wavelength (Blue)

lD

IF = 20mA



465



nm

Viewing Angle

2q1/2

IF = 20mA

110

Deg.

Luminous Intensity (Red)

IV

IF = 20mA

1,500

2,500

mcd

Luminous Intensity (Green)

IV

IF = 20mA

2,500

3,500

mcd

Luminous Intensity (Blue)

IV

IF = 20mA

1,000

1,500

mcd

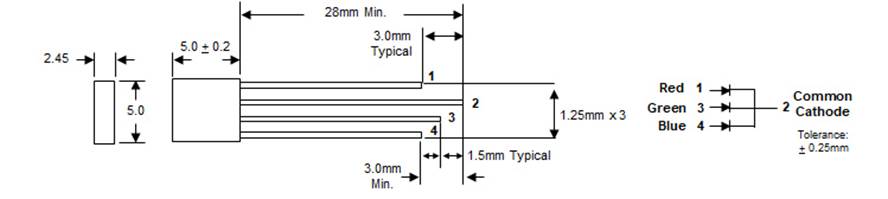

DEVICE DRAWING



A diagram of a diagram

Description automatically generated
