250AUR1G:  2mm x 5mm Rectangular Red LED Lamp Color Diffused



Rectangular Indicator LED Lamp (110 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Special Colors:  Blue & Green

(2) 2mm x 5mm Rectangular LED in Color Diffused Len

(5) Rugged & Reliable Design

(3) High Bright LED Die Material







Electro-optical Characteristics (Ta = 250C)

PART

DICE MATERIAL

VIEWING

DOMINANT

FORWARD VOLTAGE

LUMINOUS INTENSITY @ 20mA

NUMBER

COLOR

ANGLE (Degree)

WAVELENGTH
(nm)

MIN.
(V)

TYP.
(V)

MIN.
(mcd)

Max.
(mcd)

250TB1G

InGaN Blue

110

465

3.0

3.8

500

1,000

250TG1G

InGaN Green

525

3.0

3.8

1,000

2,000

250AUR1G

AlInGaP Red

625

1.8

2.2

500

1,000

250UY1G

AlInGaP Yellow

590

1.8

2.2

500

1,000





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1)  Pulse conditions of 1/10 duty, 10msec pulse width

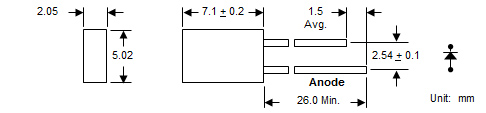

DEVICE DRAWING





LC LED Corporation
