180TW4G:  1.8mm White Indicator LED Lamp



1.8mm Indicator LED Lamp Clear Len (25 Degree)



PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Colors:  White, Blue, Red & Yellow, Green

(2) 1.8mm Indicator LED Lamp

(5) Rugged & Reliable Design

(3) High Bright LED Die Material







Electro-optical Characteristics (Ta = 250C)

PART

DICE MATERIAL

VIEWING

DOMINANT

FORWARD VOLTAGE

LUMINOUS INTENSITY @ 20mA

NUMBER

COLOR

ANGLE (Degree)

WAVELENGTH
(nm)

MIN.
(V)

TYP.
(V)

MIN.
(mcd)

Max.
(mcd)

180TW4G

White

25

5500K

3.0

3.6

3,000

6,500

180TWW4G

Warm White

3300K

3.0

3.6

2,500

6,000

180TB4G

Blue

465

3.0

3.6

1,500

3,500

180TG4G

Green

525

3.0

3.6

5,000

9,500

180AUR4G

Red

625

1.8

2.2

1,200

2,500

180UY4G

Yellow

590

1.8

2.1

1,000

2,500





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1)  Pulse conditions of 1/10 duty, 10msec max. pulse width

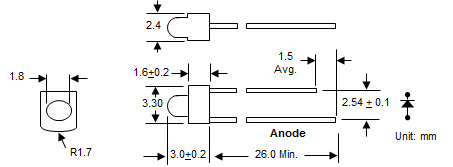

DEVICE DRAWING
