180TB4G:  1.8mm Blue Indicator LED Lamp



Indicator LED Lamp Clear Len (25 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Special Colors:  White, Blue & Warm White

(2) 1.8mm Indicator LED Lamp

(5) Rugged & Reliable Design

(3) High Bright LED Die Material







Electro-optical Characteristics (Ta = 250C)

PART

DICE MATERIAL

VIEWING

DOMINANT

FORWARD VOLTAGE

LUMINOUS INTENSITY @ 20mA

NUMBER

COLOR

ANGLE (Degree)

WAVELENGTH
(nm)

MIN.
(V)

TYP.
(V)

MIN.
(mcd)

Max.
(mcd)

180TW4G

InGaN White

25

5500K

3.0

3.8

2,000

4,500

180TWW4G

Warm White

3300K

3.0

3.8

2,000

3,500

180TB4G

InGaN Blue

465

3.0

3.8

1,500

3,500

180TG4G

InGaN Green

525

3.0

3.8

2,500

4,500

180AUR4G

AlInGaP Red

625

1.8

2.2

1,200

2,500

180UY4G

AlInGaP Yellow

590

1.8

2.2

1,000

2,500





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1)  Pulse conditions of 1/10 duty, 10msec max. pulse width

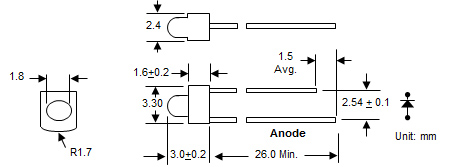

DEVICE DRAWING

LC LED Corporation
