LCE-558YP: 1W AMBER SMD LED HIGH POWER SERIES

1W SMD LED Lambertian Amber

PRODUCT DESCRIPTION





(1) RoHs Compliant Part

(5) SMD Assembly or Manual Soldering

(2) High luminous flux, low power consumption

(6) Bin Sorted By Color, Intensity & Vf

(3) Sub-compact modulated design

(7) Moisture Sensitive Component

(4) Ideal for general purpose lighting (both indoor
and outdoor)

(8) Packaging: 1,000 per Reel



Product Description







Luminous Flux (lm)
@ 350mA



PART NO.

COLOR

MIN.

TYP.

VIEWING ANGLE

LCE-558YP

Amber

30

60

120

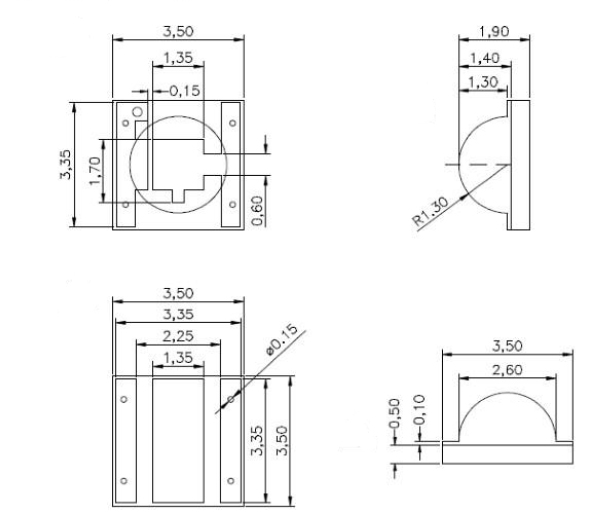

DEVICE DRAWING

devce-01devce-02devce-03device-04

solder-pad-2



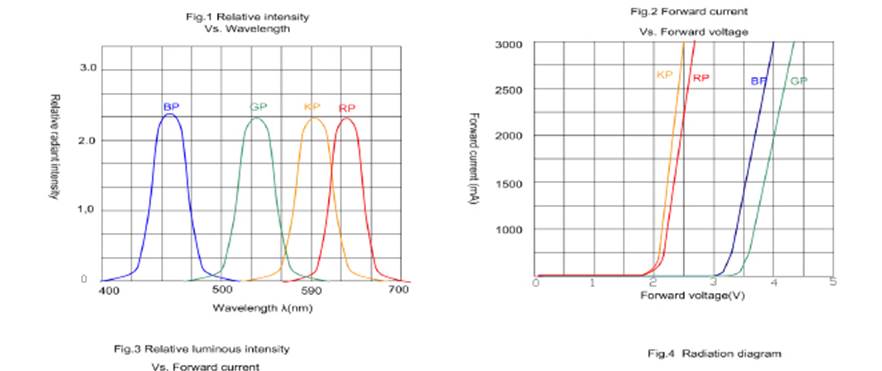

Electrical and Optical Characteristics at 350mA (Ta = 250C)



SYMBOL

PARAMETER

MIN.

MAX.

Units

TEST CONDITIONS

lD

Dominant Wavelength

585

595

Nm




I
F= 350mA

VF

Forward Voltage

1.8

2.6

V

VR

Reverse Voltage

5





IR

Reverse Current



50

mA

VR = 5V

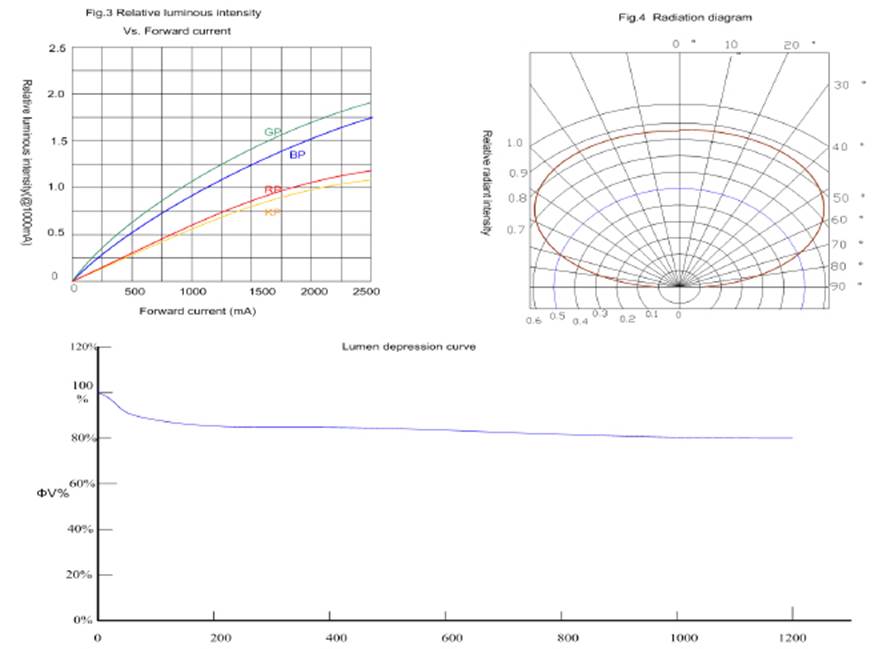

Absolute Maximum Rating (Ta = 250C)



PARAMETER

SYMBOL

TYPICAL

MAXIMUM

UNITS

Power Dissipation

PD

700

1610

mW

DC Forward Current

IF

350

700

mA

Operating Temperature

Topr

-40 to +100

0C

Storage Temperature

Tstg

-40 to +100

0C

Junction Temperature

Tj



125

0C

Thermal Resistance (1)



10.23



0C/W

(1) Thermal resistance from LED junction to LED mounting point (optical power included).

LCE-558YP LUMINOUS FLUX BINS



LUMINOUS FLUX (lumens) @ 350mA

BIN

MIN.

TYP.

J6

30

35

K1

35

40

K2

40

45

K3

45

50

L1

50

55

L2

55

60

LCE-558YP VOLTAGE BINS





BIN

MIN. (V)

MAX. (V)

1

1.8

2.0

2

2.2

2.2

3

2.2

2.4

4

2.4

2.6

LCE-558YP WAVELENGTH BINS





BIN

MIN. (nm)

MAX. (nm)

1

585

590

2

590

595
