LCE-558WP: 1W WHITE SMD LED HIGH POWER SERIES

1W SMD LED Lambertian White

PRODUCT DESCRIPTION





(1) RoHs Compliant Part

(5) SMD Assembly or Manual Soldering

(2) High luminous flux, low power consumption

(6) Bin Sorted By Color, Intensity & Vf

(3) Sub-compact modulated design

(7) Moisture Sensitive Component

(4) Ideal for general purpose lighting (both indoor
and outdoor)

(8) Packaging: 1,000 per Reel



Product Description







Luminous Flux (lm)
@ 350mA



PART NO.

COLOR

MIN.

TYP.

VIEWING ANGLE

LCE-558WP

White

80

139

120

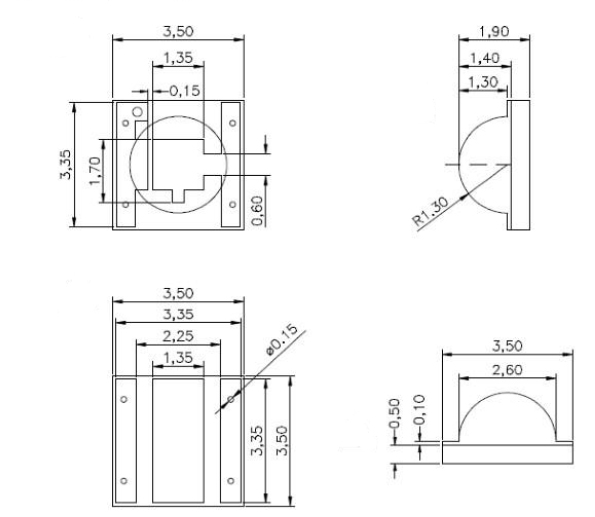

DEVICE DRAWING

devce-01devce-02devce-03device-04

solder-pad-2



Electrical and Optical Characteristics at 350mA (Ta = 250C)



SYMBOL

PARAMETER

MIN.

MAX.

Units

TEST CONDITIONS

lD

Dominant Wavelength (Kelvin)

2700

8000

K




I
F= 350mA

VF

Forward Voltage

2.8

3.6

V

VR

Reverse Voltage

5





IR

Reverse Current



50

mA

VR = 5V

Absolute Maximum Rating (Ta = 250C)



PARAMETER

SYMBOL

TYPICAL

MAXIMUM

UNITS

Power Dissipation

PD



1700

mW

DC Forward Current

IF

350

700

mA

Operating Temperature

Topr

-40 to +100

0C

Storage Temperature

Tstg

-40 to +100

0C

Junction Temperature

Tj



125

0C

Thermal Resistance (1)







0C/W

(1) Thermal resistance from LED junction to LED mounting point (optical power included).



LCE-558WP LUMINOUS FLUX BINS Warm White, Neutral White, Cool White





CRI

WAVELENGTH (Kelvin)



Lumens @ 350mA

COLOR

(MIN.)

MIN.

MAX.

BIN

MIN.

TYP.

Warm White

70

2700

3700

1Y

80

87

1Z

87

94

2A

94

100

2B

100

107

2C

107

114

2D

114

122

Neutral White

70

3700

5000

1Z

87

94

2A

94

100

2B

100

107

2C

107

114

2D

114

122

2E

122

130

2F

130

139

Cool White

70

5000

8000

2A

94

100

2B

100

107

2C

107

114

2D

114

122

2E

122

130

2F

130

139

Warm White

80

2700

3700

1W

70

75

1X

75

80

1Y

80

87

1Z

87

94

2A

94

100

Neutral White

80

3700

5000

1Y

80

87

1Z

87

94

2A

94

100

2B

100

107

Cool White

80

5000

8000

1Z

87

94

2A

94

100

2B

100

107



LCE-558WP VOLTAGE BINS





BIN

MIN. (V)

MAX. (V)

1

2.8

3.0

2

3.0

3.2

3

3.2

3.4

4

3.4

3.6

LCE-558WP WAVELENGTH BIN COORDINATES





WAVELENGTH (KELVIN)

CIE X / Y MAPPING STRUCTURE

2700

8A, 8B, 8C, 8D

3000

7A. 7B, 7C, 7D

3500

6A, 6N, 6C, 6D

4000

5A, 5B, 5C, 5D

4500

4A, 4B, 4C, 4D, 4R, 4S, 4T, 4U

5000

3A, 3B, 3C, 3D, 3R, 3S, 3T, 3U

5700

2A, 2B, 2C, 2D, 2R, 2S, 2T, 2U

6500

1A, 1B, 1C, 1D, 1R, 1S, 1T, 1U

8000

0A, 0B, 0C, 0D, 0R, 0S, 0T, 0U



WARM WHITE / NEUTRAL WHITE BIN STRUCTURE



2

NEUTRAL WHITE / COOL WHITE BIN STRUCTURE

042
