LCE-558DR: 3W Deep Red SMD LED HIGH POWER 3W RED

3W Deep Red 660nm Power SMD LED 140 Degree

PRODUCT DESCRIPTION
(1) RoHs Compliant Part	(5) SMD Assembly or Manual Soldering
(2) High luminous flux, low power consumption	(6) Bin Sorted By Color, Intensity & Vf
(3) Sub-compact modulated design	(7) Moisture Sensitive Component
(4) Peak Wavelength of 660nm for Horticultural or General Lighting

DESCRIPTION

		Luminous Flux (lm) @ 700mA
PART NO.	COLOR	MIN.	TYPICAL	VIEWING ANGLE
LCE-558DR	Deep Red	30	57	140

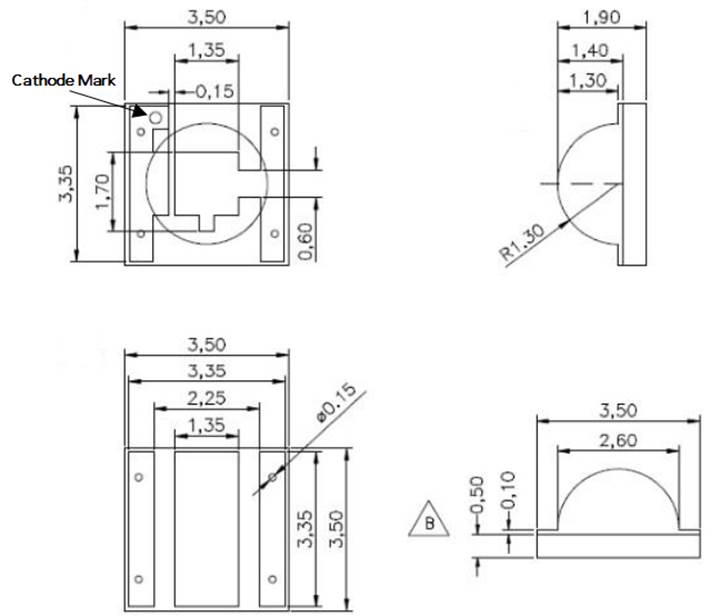

DEVICE DRAWING

ELECTRICAL AND OPTICAL CHARACTERISTICS AT 700mA (Ta = 25⁰C)

SYMBOL	PARAMETER	TYPICAL	MAX.	Units	TEST CONDITIONS
lD	Dominant Wavelength	660		nm	IF= 700mA
VF	Forward Voltage	2.0	2.4	V
VR	Reverse Voltage	5
IR	Reverse Current		20	mA	VR = 5V

ABSOLUTE MAXIMUM RATING (Ta = 25⁰C)

PARAMETER	SYMBOL	TYPICAL	MAXIMUM	UNITS
Power Dissipation	PD		3000	mW
DC Forward Current	IF		700	mA
Peak Forward Current (1)	IP		1000	mA
Operating Temperature	Topr	-30 to +100		^0C
Storage Temperature	Tstg	-40 to +100		^0C

(1) Pulse conditions of 1/10 duty and 0.1msec max. pulse width

LC LED Corporation
