► Surface mountable 3.5mm x 3.5mm high power led ► Design for high output current operation with minimal
thermal resistance ► High performance quality lighting applications including ˇ
Architectural
lighting ˇ
Stage lighting ˇ
Commercial and
industrial lighting ˇ
Horticultural
lighting ˇ
Amusement park and
entertainment lighting ► RoHs, Pb-Free and Reach |
OPTICAL CHARACTERISTICS (Ta = 250C)
|
Luminous Flux (lm) |
|
COLOR |
MIN. |
MAX. |
Red |
50 |
68 |
Green |
100 |
120 |
Blue |
20 |
25 |
White
(2100K-5700K) |
80 |
110 |
White
(6000K-6500K) |
100 |
110 |
WAVELENGTH BIN
|
WAVELENGTH (nm) |
|
COLOR |
MIN. |
MAX. |
Red |
620 |
625 |
Green |
455 |
460 |
Blue |
520 |
525 |
White |
5500K |
6500K |
ELECTRICAL AND OPTICAL
CHARACTERISTICS 350mA (Ta = 250C)
PARAMETER |
SYMBOL |
Color |
MIN. |
TYP. |
MAX. |
Units |
Forward
Voltage |
VF |
Red |
2.2 |
|
2.4 |
V |
VF |
Blue |
3.0 |
|
3.2 |
||
VF |
Green |
3.0 |
|
3.2 |
||
VF |
White (6000K) |
3.0 |
|
3.2 |
||
Reverse Current |
IR |
RGBW |
|
|
10 |
ľA |
Viewing Angle |
2q1/2 |
RGBW |
|
168 |
|
Degree |
Electrostatic Discharge |
ESD |
RGBW |
2000 |
|
|
V |
ABSOLUTE
MAXIMUM RATING (Ta = 250C)
PARAMETER |
SYMBOL |
TYPICAL |
MAXIMUM |
UNITS |
Power Dissipation |
PD |
|
6 |
W |
DC Forward Current |
IF |
|
400 |
mA |
Peak Forward Current (1) |
IP |
|
450 |
mA |
Reverse Voltage |
VR |
|
5 |
V |
Operating Temperature |
Topr |
-40 to +85 |
0C |
|
Storage Temperature |
Tstg |
-40 to +105 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec
max. pulse width
SPECTRAL DISTRIBUTION GRAPH

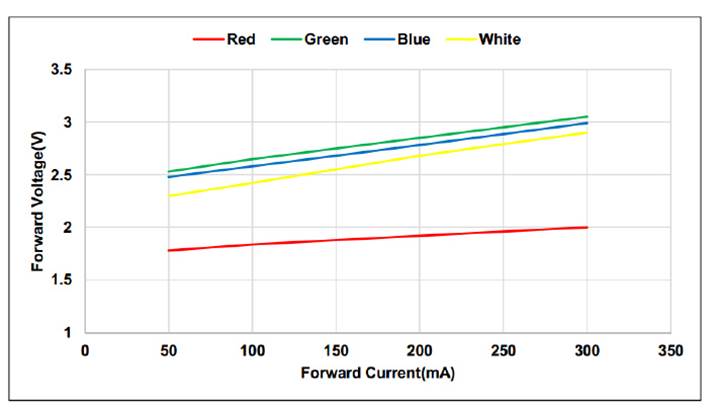

FORWARD VOLTAGE VS. CURRENT

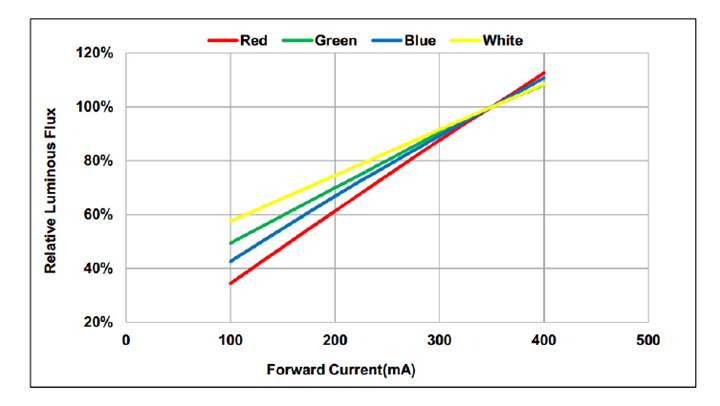

INTENSITY VS. CURRENT
