LCE-358RGBP:  3W HIGH POWER RGB SMD LED

A picture containing indoor, wall

Description automatically generated

     Surface mountable 3.5mm x 3.5mm x. 3.02mm high power led

     Design for high output current operation with minimal thermal resistance

     High performance quality lighting applications including

ˇ        Architectural lighting

ˇ        Stage lighting

ˇ        Commercial and industrial lighting

ˇ        Horticultural lighting

ˇ        Amusement park and entertainment lighting

     RoHs, Pb-Free and Reach

A close up of text on a white background

Description automatically generated

OPTICAL CHARACTERISTICS (Ta = 250C)





Luminous Flux (lm)
@ 350mA

COLOR

MIN.

MAX.

Red

50

68

Green

100

120

Blue

20

25



WAVELENGTH BIN



WAVELENGTH (nm)

COLOR

MIN.

MAX.

Red

620

625

Green

455

460

Blue

520

525



ELECTRICAL AND OPTICAL CHARACTERISTICS 350mA (Ta = 250C)



PARAMETER

SYMBOL

Color

MIN.

TYP.

MAX.

Units

Forward Voltage

VF

Red

2.2



2.4

V

VF

Blue

3.0



3.2

VF

Green

3.0



3.2

Reverse Current

IR

RGB





10

ľA

Viewing Angle

2q1/2

RGB



140



Degree

Electrostatic Discharge

ESD

RGB

2000





V

Thermal Resistance

RTH

Red



15



0C / W

Blue



18



Green



15



ABSOLUTE MAXIMUM RATING (Ta = 250C)



PARAMETER

SYMBOL

TYPICAL

MAXIMUM

UNITS

Power Dissipation

PD



3.5

mW

DC Forward Current

IF



400

mA

Peak Forward Current (1)

IP



400

mA

Reverse Voltage

VR



5

V

LED Junction Temperature

Tj



125

0C

Operating Temperature

Topr

-40 to +105

0C

Storage Temperature

Tstg

-40 to +105

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec max. pulse width

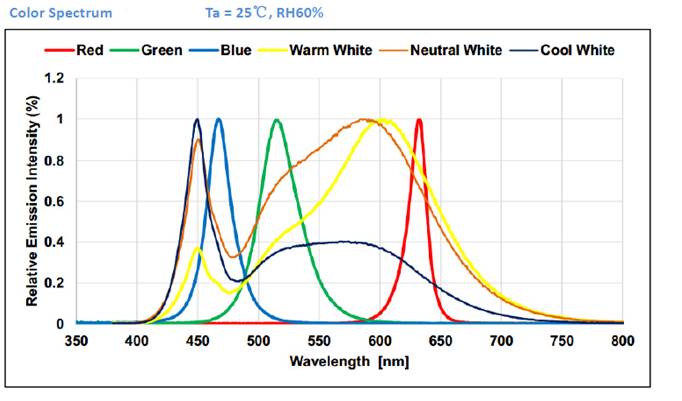

SPECTRAL DISTRIBUTION GRAPH

A screenshot of a social media post

Description automatically generated

FORWARD VOLTAGE VS. CURRENT

A screenshot of a social media post

Description automatically generated

INTENSITY VS. CURRENT

A close up of a map

Description automatically generated
