LCE-358GP: X-Bright Green
Power SMD LED Emitter
|
PRODUCT DESCRIPTION |
|
|
|
(1) RoHs Compliant Part |
(5) SMD Assembly or Manual Soldering |
|
|
(2) High luminous flux, low power consumption |
(6) Bin Sorted By Color, Intensity & Vf |
|
|
(3) Sub-compact modulated design |
(7) Moisture Sensitive Component |
|
|
(4) Ideal for general purpose lighting (both indoor
|
(8) Packaging:
2,000 per Reel |
PRODUCT DESCRIPTION
|
|
|
Luminous Flux (lm) |
|
|
|
PART NO. |
DICE MATERIAL |
MIN. |
TYP. |
VIEWING ANGLE |
|
LCE-358GP |
Green (InGaN) |
30 |
40 |
120 |
(1)
Tolerance of + 10% (Intensity Measurement)
DEVICE DRAWING
Notch: Common Anode
ELECTRICAL AND OPTICAL
CHARACTERISTICS at 100mA (Ta = 250C)
|
SYMBOL |
PARAMETER |
MIN. |
TYP. |
Units |
TEST CONDITIONS |
|
lD |
Dominant Wavelength |
525 |
530 |
Nm |
IF= 150mA |
|
C |
Capacitance |
|
45 |
pF |
VF = 0; f = 1MHz |
|
VF |
Forward Voltage |
3.0 |
3.6 |
V |
IF= 150mA |
|
IR |
Reverse Current |
|
10 |
mA |
VR = 5V |
ABSOLUTE MAXIMUM
RATING (Ta = 250C)
|
PARAMETER |
GREEN |
UNITS |
|
Power Dissipation |
500 |
mW |
|
DC Forward Current |
150 |
mA |
|
Peak Pulse Forward Current (1) |
1,000 |
mA |
|
Reverse Voltage |
5 |
V |
|
Storage & Operating Temperature |
-40 to
+85 (0C) |
|
(1) 1/10 Duty Cycle, 10ms
Max. Pulse Width

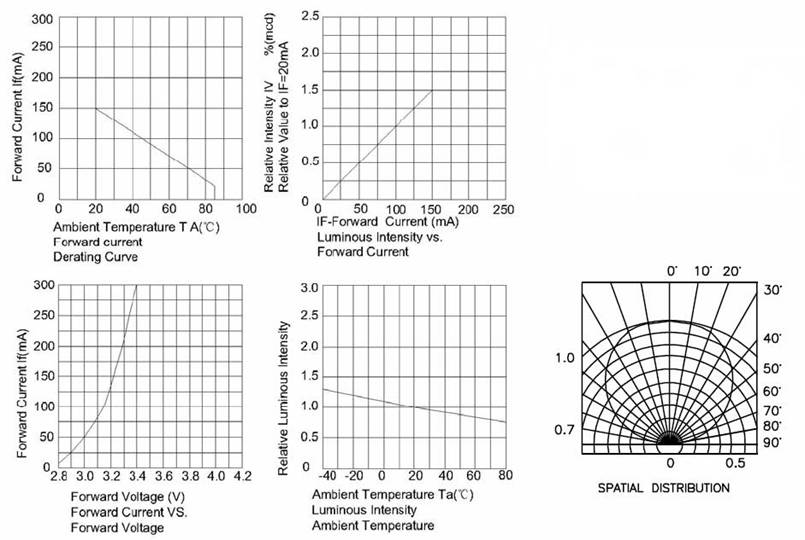

ELECTRO-OPTICAL CHARACTERISTICS GRAPHS
|
LC LED Corporation |
