LCD-5622YG11: 7-Segment Green Double Digit 0.56 Inch (14.20mm) LED Display

PRODUCT DESCRIPTION



(1) 0.56 Inch (14.20mm) Digit Height

(5)  Black color background

(2) Low current operation

(6)  Common Anode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, blue, red, yellow and green







Absolute Maximum Rating (Ta = 250C)

PARAMETER

RED

AMBER

GREEN

BLUE

UNITS

DC Forward Current Per Segment

30

30

25

30

mA

Peak Current Per Segment (1)

80

70

70

90

mA

Avg. Forward Current (Pulse Operation) Per Segment

30

30

25

30

mA

Derating Linear From 250C Per Segment

0.3

mA/0C

Reverse Voltage (2)

3

V

Operating Temperature

-25 to +85

0C

Storage Temperature

-0 to +100

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing of the dot matrix is not recommend, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 10mA)

LCD-5622AUR11

AlGaAs
Red

660

10

1.8

2.3

20,000 ucd

LCD-5622TB11

InGaN
Blue

468

10

3.3

4.0

30,000 ucd

LCD-5622YG11

GaP
Green

568

10

1.9

2.3

20,000 ucd

LCD-5622UY11

AlInGaP
Amber

590

10

1.8

2.3

22,000 ucd

LCD-5622TW11

InGaN
White

5,500K

10

3.3

4.0

30,000 ucd

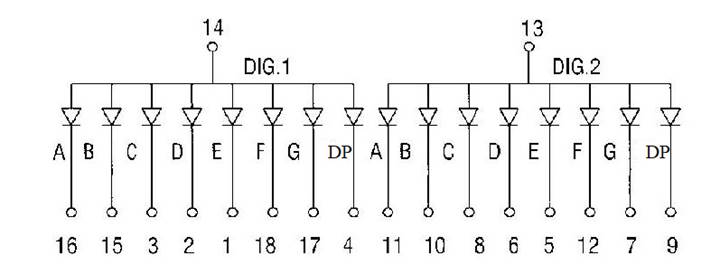

DEVICE DIAGRAM
