LCD-4032TW1C:  7Segment White Double Digit 0.40 Inch (10.16mm) Cathode Display

PRODUCT DESCRIPTION



(1) Double Digit 0.40 Inch (10.16mm) Height

(5)  Black color background

(2) Low current operation

(6)  Common Cathode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Color:  White







Absolute Maximum Rating (Ta = 250C)

PARAMETER

WHITE

UNITS

DC Forward Current Per Segment

20

mA

Peak Current Per Segment (1)

25

mA

Avg. Forward Current (Pulse Operation) Per Segment

25

mA

Reverse Voltage (2)

3

V

Operating Temperature

-25 to +85

0C

Storage Temperature

-30 to +85

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing of the dot matrix is not recommend, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 10mA)

LCD-4032TW1C

InGaN
White

5,500K

10

3.3

3.8

20,000 ucd





First Segment                                                            Second Segment

PIN



PIN





PIN



PIN



1

Cathode D1

6

Cathode B1



1

Cathode D2

6

Cathode B2

2

Cathode DP1

7

Cathode A1



2

Cathode DP2

7

Cathode A2

3

Cathode E1

8

Cathode F1



3

Cathode E2

8

Cathode F2

4

Cathode C1

9

Cathode G1



4

Cathode C2

9

Cathode G2

5

Common Anode 5

10

Common Anode 10



5

Common Anode 5

10

Common Anode 10

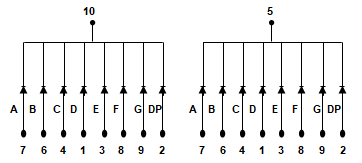

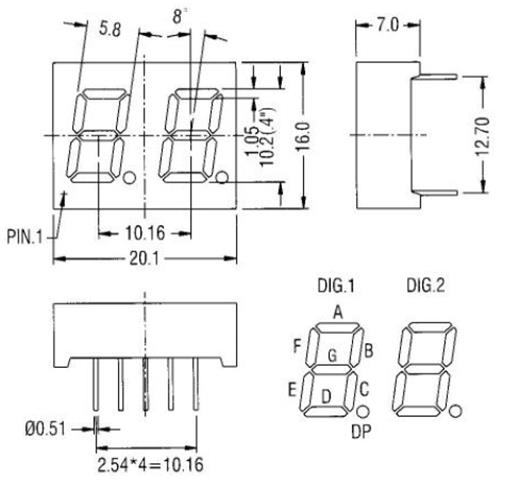

DEVICE DIAGRAM
