LCB-030UWG4P: 3W High Power White & 3W Green LED (140 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) High Current Operation From 350mA to 700mA

(2) Super Bright 3W White & 3W Green LED Emitters

(5)  Sun Light Viewable LED Lamp

(3) Single or Dual Color Mixing

(6)  Suitable for Both Indoor & Outdoor Use

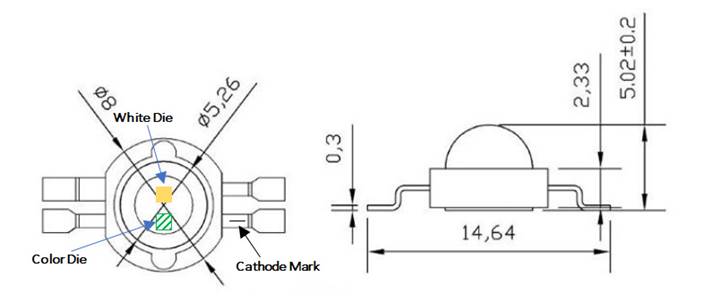

PACKAGE DIMENSIONS









Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

700

mA

Peak Pulse Forward Current (1)

1000

mA

Reverse Voltage

5

V

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Junction Temperature

120

0C

Voltage Temperature Coefficient

-5

mV / 0C

Lead Soldering Temperature

2600C for 5 Seconds Max. (1.6mm from Body)



(1)  Pulse conditions of 1/10 duty and 0.1msec width. Reverse voltage is not recommended for this device.





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

DC Forward Voltage (Green)

VF

IF = 700mA

3.0

3.5

V

DC Forward Voltage (White)

VF

IF = 700mA

3.0

3.6

V

Luminous Intensity (Green)

IV (1)

IF = 350mA



25,485



mcd

Luminous Intensity (Green)

IV

IF = 700mA

160



190

lm

Luminous Intensity (White)

IV (2)

IF = 350mA



35,000



mcd

Luminous Intensity (White)

IV

IF = 700mA

200



280

lm

Viewing Angle

2q1/2

IF = 700mA

140

Deg.

Dominant Wavelength (Green)

lD

IF = 700mA

515

525

nm

Dominant Wavelength (White)

lD

IF = 700mA



6000



K

(1)  Green millicandela intensity at 350mA based on 80 lumens

(2)  White millicandela intensity at 350mA based on 110 lumens

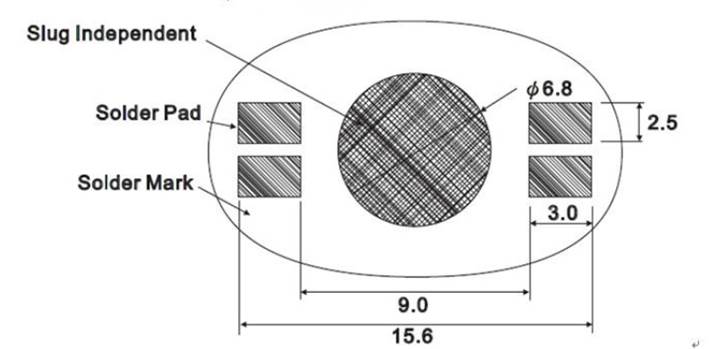

SOLDER PAD PROFILE
