PRODUCT DESCRIPTION |
|
|
(1)
RoHs Compliant Part |
(4)
High Current Operation From 350mA to 700mA |
|
(2)
High Lumens 3W Blue & 3W Yellow LEDs |
(5) Sun Light Viewable LED Lamp |
|
(3)
Single or Dual Color Mixing |
(6) Suitable for Both Indoor & Outdoor Use |

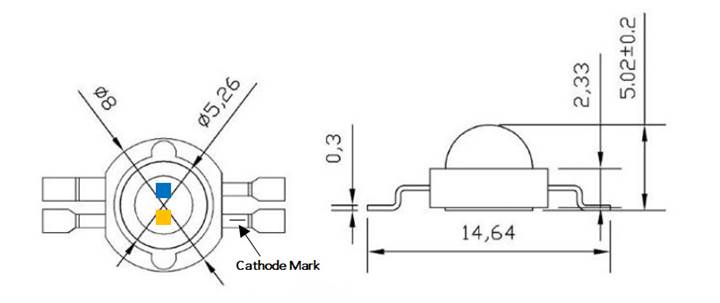

PACKAGE
DIMENSIONS
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
700 |
mA |
|
Peak Pulse Forward Current (1) |
1000 |
mA |
|
Reverse Voltage |
5 |
V |
|
Operating Temperature |
-30 to +85 |
0C |
|
Storage Temperature |
-40 to +100 |
0C |
|
Junction Temperature |
120 |
0C |
|
Voltage Temperature
Coefficient |
-5 |
mV / 0C |
|
Lead Soldering Temperature |
2600C for 5 Seconds Max. (1.6mm from Body) |
|
(1) Pulse
conditions of 1/10 duty and 0.1msec width. Reverse voltage is not recommended
for this device.
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
DC
Forward Voltage (Blue) |
VF |
IF = 700mA |
3.0 |
3.5 |
V |
|
|
DC
Forward Voltage (Yellow) |
VF |
IF = 700mA |
2.0 |
2.6 |
V |
|
|
Luminous
Intensity (Blue) |
IV (1) |
IF = 350mA |
|
7,958 |
|
mcd |
|
Luminous
Intensity (Blue) |
IV |
IF = 700mA |
40 |
|
60 |
lm |
|
Luminous
Intensity (Yellow) |
IV (2) |
IF = 350mA |
|
12,000 |
|
mcd |
|
Luminous
Intensity (Yellow) |
IV |
IF = 700mA |
70 |
|
80 |
lm |
|
Viewing
Angle |
2q1/2 |
IF = 700mA |
120 |
Deg. |
||
|
Dominant
Wavelength (Blue) |
lD |
IF = 700mA |
460 |
465 |
nm |
|
|
Dominant
Wavelength (Yellow) |
lD |
IF = 700mA |
590 |
595 |
nm |
|
(1) Blue millicandela intensity at 350mA based on
25 lumens
(2) Yellow millicandela intensity at 350mA based
on 38 lumens

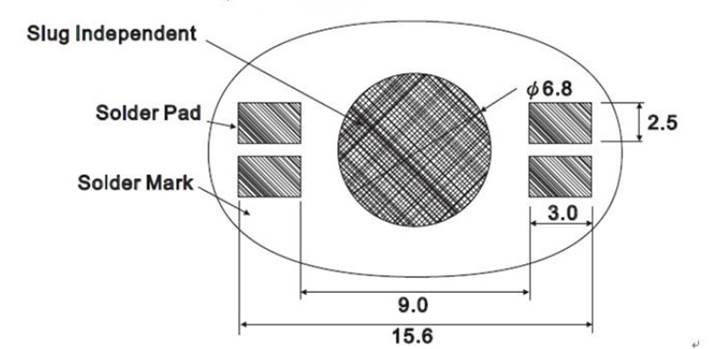

SOLDER
PAD PROFILE
|
LC LED Corporation |
