LC2088TW1C: 2.3 (58mm) 8x8 White LED Dot Matrix (Cathode Row)

PRODUCT DESCRIPTION



(1) Dot Matrix Height 2.3 Inch (58mm)

(5) Black color background

(2) Low current operation

(6) Common Cathode Row

(3) Excellent color contrast and uniformity

(7) RoHs Compliant Part

(4) Colors: White







Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

Power Dissipation per Dot

40

mW

DC Forward Current per Dot

20

mA

Reverse Voltage per Dot (IR = 10mA)

5

V

Peak Pulse Forward Current per Dot (1)

100

mA

Operating Temperature

-40 to +80

0C

Storage Temperature

-40 to +100

0C

(1) Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2) Solder Temperature of 1/16 Below Seating Plane for 5 Seconds at 2600C





Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage per Dot

VF

IF = 20mA



3.3

3.8

V

Reverse Current per Dot

IR

VR = 5V





40

mA

Chromaticity Coordinate

x

IF = 20mA



0.31





y

IF = 20mA



0.32





Luminous Intensity

IV

IF = 20mA



35



mcd

Luminous Intensity Matching Ratio

Iv-m

IF = 20mA

2:1





                                        PCB PIN CONNECTON

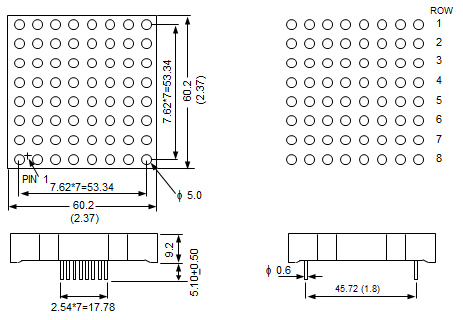

                                           DEVICE DIAGRAM
