LC2088TUR1A:  2.3” (58mm) 8x8 Red LED Dot Matrix (Anode Row)

PRODUCT DESCRIPTION



(1) Dot Matrix Height 2.3 Inch (58mm)

(5)  Black color background

(2) Low current operation

(6)  Common Anode Row

(3) Excellent color contrast and uniformity

(7)  RoHs Compliant Part

(4) Colors:  White, blue, red, yellow and green







Absolute Maximum Rating (Ta = 250C)

PARAMETER

RED

AMBER

GREEN

BLUE

UNITS

Power Dissipation

125

115

105

165

mW

Peak Pulse Forward Current (1)

100

100

80

100

mA

DC Forward Current

30

30

25

30

mA

Reverse Voltage (2)

3

3

3

3

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing of the dot matrix is not recommend, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)


MAX.
REVERSE
CURRENT
(
mA)




VF (V)
MIN.




VF (V)
MAX.



LUMINOUS INTENSITY
(IF = 10mA)

LC2088AUR1A

AlGaAs
Red

660

10

1.6

2.4

45,000 ucd

LC2088TUR1A

AlInGaP
Red

635

10

1.6

2.4

65,000 ucd

LC2088UY1A

GaAsP
Amber

590

10

1.7

2.4

30,000 ucd

LC2088TUY1A

AlInGaP
Amber

590

10

1.7

2.4

60,000 ucd

LC2088YG1A

GaP
Green

568

10

1.7

2.4

30,000 ucd

LC2088TB1A

InGaN
Blue

468

10

3.0

3.8

65,000 ucd

LC2088TW1A

InGaN
White

5,500K

10

3.0

3.8

65,000 ucd







PCB PIN CONNECTON

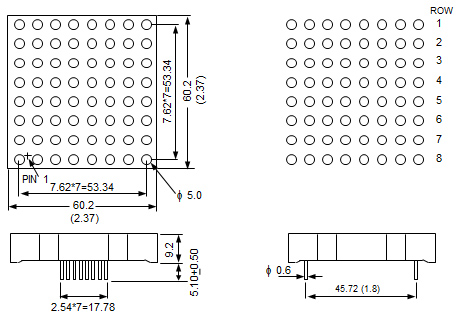

DEVICE DIAGRAM
