LC2088AURYG1C:  2.3” (58mm) 8x8 Bicolor LED Dot Matrix

PRODUCT DESCRIPTION



(1) Dot Matrix Height 2.3 Inch (58mm)

(5)  Black color background

(2) Low current operation

(6)  Common Cathode Row

(3) Excellent color contrast and uniformity

(7)  RoHs Compliant Part

(4) Bicolor Red and Green







Absolute Maximum Rating (Ta = 250C)

PARAMETER

RED

GREEN

UNITS

Power Dissipation

125

105

mW

Peak Pulse Forward Current (1)

100

80

mA

DC Forward Current

30

25

mA

Reverse Voltage (2)

5

5

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing of the dot matrix is not recommend, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)


MAX.
REVERSE
CURRENT
(mA)




VF (V)
MIN.




VF (V)
MAX.



LUMINOUS INTENSITY
(IF = 10mA)

LC2088AURYG1C

AlGaAs
Red

660

10

1.6

2.4

45,000 ucd

GaP
Green

590

10

1.8

2.6

20,000 ucd

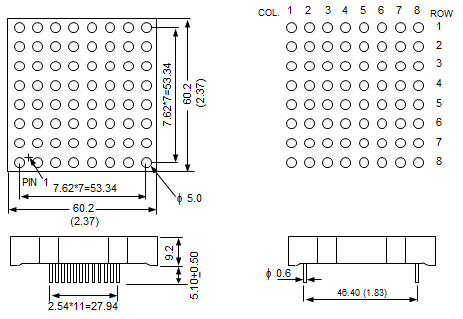

                                    PCB PIN CONNECTON










































                                         DEVICE DIAGRAM



























LC LED Corporation
