LC2057TUR1C:  2.09” (53mm) 5x7 RED LED Dot Matrix

PRODUCT DESCRIPTION



(1) Dot Matrix Height 2.09 Inch (53mm)

(5)  Black color background

(2) Low current operation

(6)  Common Cathode Row

(3) Excellent color contrast and uniformity

(7)  RoHs Compliant Part

(4) Colors:  White, blue, red, yellow and green







Absolute Maximum Rating (Ta = 250C)

PARAMETER

RED

AMBER

GREEN

BLUE

UNITS

Power Dissipation

110

105

90

150

mW

Peak Pulse Forward Current (1)

100

100

80

100

mA

DC Forward Current

30

30

25

20

mA

Reverse Voltage (2)

3

3

3

3

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing of the dot matrix is not recommend, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)


MAX.
REVERSE
CURRENT (mA)




VF (V)
MIN.




VF (V)
MAX.



LUMINOUS INTENSITY
(IF = 10mA)

LC2057AUR1C

AlGaAs
Red

660

10

1.6

2.4

26,000 ucd

LC2057TUR1C

InGaAlP
Red

630

10

1.6

2.4

42,000 ucd

LC2057UY1C

InGaAlP
Amber

590

10

1.7

2.4

25,000 ucd

LC2057YG1C

GaP
Green

568

10

1.7

2.4

25,000 ucd

LC2057UYG1C

InGaAlP
Green

571

10

1.7

2.4

35,000 ucd

LC2057UYG1C

InGaAlP
Green

571

10

1.7

2.4

35,000 ucd

LC2057TB1C

InGaN
Blue

468

10

3.0

3.8

45,000 ucd

LC2057TW1C

InGaN
White

5,500K

10

3.0

3.8

45,000 ucd





                                      PCB PIN CONNECTON

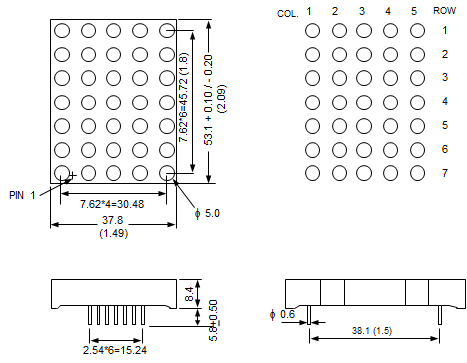

                                          DEVICE DIAGRAM
