LC2057TB1A:  2.09” (53mm) 5x7 Blue LED Dot Matrix

PRODUCT DESCRIPTION



(1) Dot Matrix Height 2.09 Inch (53mm)

(5)  Black color background

(2) Low current operation

(6)  Common Anode Row

(3) Excellent color contrast and uniformity

(7)  RoHs Compliant Part

(4) Colors:  White, blue, red, yellow and green







Absolute Maximum Rating (Ta = 250C)

PARAMETER

RED

AMBER

GREEN

BLUE

UNITS

Power Dissipation

110

105

90

150

mW

Peak Pulse Forward Current (1)

100

100

80

100

mA

DC Forward Current

30

30

25

20

mA

Reverse Voltage (2)

3

3

3

3

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing of the dot matrix is not recommend, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)


MAX.
REVERSE
CURRENT (
mA)




VF (V)
MIN.




VF (V)
MAX.



LUMINOUS INTENSITY
(IF = 10mA)

LC2057TUR1A

InGaAlP
Red

630

10

1.6

2.4

42,000 ucd

LC2057UY1A

InGaAlP
Amber

590

10

1.7

2.4

25,000 ucd

LC2057UYG1A

InGaAlP
Green

571

10

1.7

2.4

35,000 ucd

LC2057TB1A

InGaN
Blue

468

10

3.0

3.8

45,000 ucd

LC2057TW1A

InGaN
White

5,500K

10

3.0

3.8

45,000 ucd







PCB PIN CONNECTON

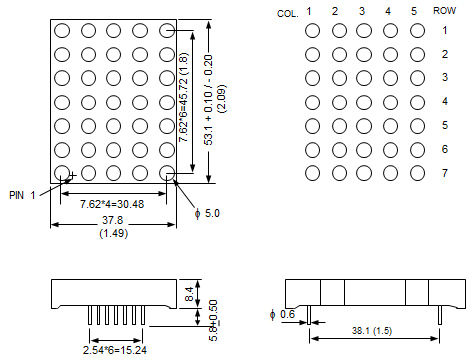

DEVICE DIAGRAM
