LC1258UYG1C:  1.4” (37.4mm) 5x8 Green LED Dot Matrix

PRODUCT DESCRIPTION



(1) Dot Matrix Height 1.4 Inch

(5)  Black color background

(2) Low current operation

(6)  Common Cathode Row

(3) Excellent color contrast and uniformity

(7)  RoHS Compliant Part

(4) Colors:  White, Blue, Green, Red & Amber (2mm Dot Size)







Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

AMBER

GREEN

BLUE

UNITS

Power Dissipation

110

105

90

150

mW

Peak Pulse Forward Current (1)

100

100

80

100

mA

DC Forward Current

30

30

30

25

mA

Reverse Voltage (2)

3

3

3

3

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing of the dot matrix is not recommend, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)







PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)


MAX.
REVERSE
CURRENT (
mA)




VF (V)
MIN.




VF (V)
MAX.



LUMINOUS INTENSITY
(IF = 10mA)

LC1258TUR1C

InGaAlP
Red

630

10

1.8

2.3

55,000 ucd

LC1258TUY1C

InGaAlP
Amber

590

10

1.7

2.4

45,000 ucd

LC1258UYG1C

InGaAlP
Green

571

10

1.7

2.4

35,000 ucd

LC1258TB1C

InGaN
Blue

468

10

3.0

3.6

60,000 ucd

LC1258TW1C

InGaN
White

5,500K

10

3.0

3.6

65,000 ucd





CIRCUIT LAYOUT



A picture containing calendar

Description automatically generated

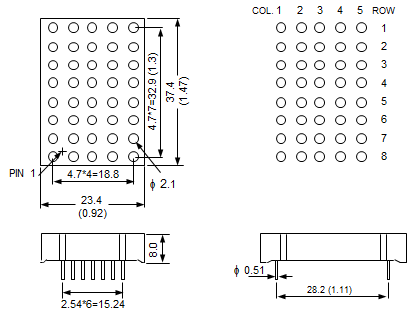

DEVICE DIAGRAM





Diagram

Description automatically generated

LC LED Corporation
