LC0757AURYG2C:  5x7 Bi-Color Red & Green LED Dot Matrix 0.7” (17.8mm)

PRODUCT DESCRIPTION



(1) Dot Matrix Height 0.70 Inch (17.8mm)

(5)  Gray color background

(2) Low current operation

(6)  Common Cathode Row

(3) Excellent color contrast and uniformity

(7)  RoHs Compliant Part

(4) Bicolor Red & Green







Absolute Maximum Rating (Ta = 250C)

PARAMETER

RED

GREEN

UNITS

Power Dissipation

40

40

mW

Peak Pulse Forward Current (1)

100

100

mA

DC Forward Current

30

30

mA

Reverse Voltage (2)

5

5

V

Operating Temperature (3)

-40 to +80

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing of the dot matrix is not recommend, will cause damage to the leds

(3)  260C for 5 seconds max., solder temperature 1/16” below seating plane





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)


MAX.
REVERSE
CURRENT (mA)




VF (V)
MIN.




VF (V)
MAX.



LUMINOUS INTENSITY
(IF = 10mA)

LC0757AURYG2C

AlGaAs
Red

660

10

1.7

2.1

28,000 ucd

GaP
Green

570

10

1.8

2.6

20,000 ucd









PCB PIN CONNECTON

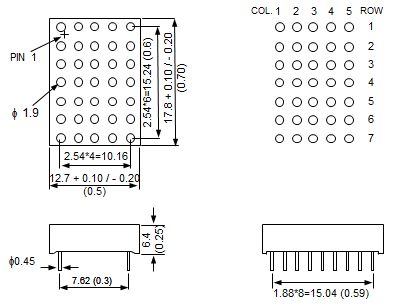

DEVICE DIAGRAM


LC LED Corporation
