LC LED-SLT-775GR:  PLCC Bicolor Green & Red SMD LED

LC LED Power Top SMD Green and Red (120 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Suitable for SMT Assembly

(2) Super Bright Bi-Color SMD LED Green & Red

(5)  Sun Light Viewable SMD LED

(3) Excellent color mixing characteristics

(6)  Rugged design suitable for both indoor & outdoor use





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

125

mA

Avg. Forward Current

30

mA

Operating & Storage Temperature

-40 to +80

0C

(1)     Pulse width of 1/10 duty and 10msec width, for long operating life, max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage (Green)

VF

IF = 20mA

3.0



3.6

V

Forward Voltage (Red)

VF

IF = 20mA

1.6



2.1

V

Capacitance (Green)

C

Vf = 0V, f = 1MHz



45



pF

Capacitance (Red)

C

Vf = 0V, f = 1MHz



35



pF

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength (Green)

lD

IF = 20mA

520



525

nm

Dominant Wavelength (Red)

lD

IF = 20mA

620



630

nm

Viewing Angle

2q1/2

IF = 20mA



120



Deg.

Luminous Intensity (Green)

IV

IF = 20mA

800

1,600

mcd

Luminous Intensity (Red)

IV

IF = 20mA

400

600

mcd

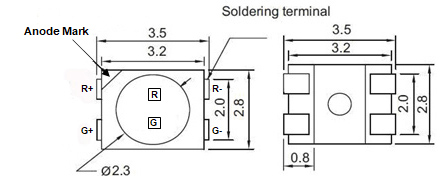

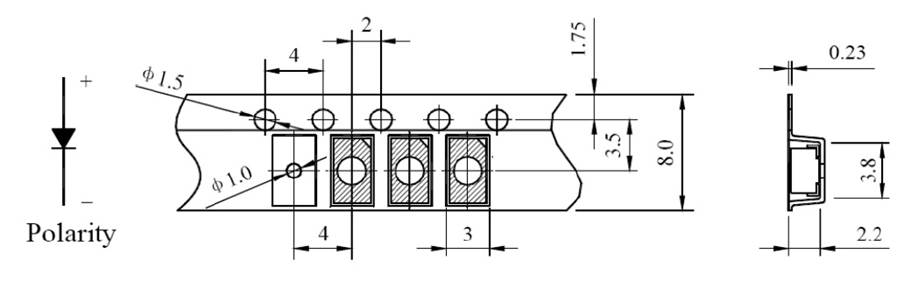

DEVICE DIAGRAM



R-G
