LC LED-SLT-775BY:  PLCC Bicolor Blue & Amber SMD LED

LC LED Power Top SMD Blue and Amber (120 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Suitable for SMT Assembly

(2) Super Bright Bi-Color SMD LED Blue & Amber

(5)  Sun Light Viewable SMD LED

(3) Excellent color mixing characteristics

(6)  Rugged design suitable for both indoor & outdoor use





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

125

mA

Avg. Forward Current

30

mA

Operating & Storage Temperature

-40 to +80

0C

(1)     Pulse width of 1/10 duty and 10msec width, for long operating life, max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage (Blue)

VF

IF = 20mA

3.0



3.6

V

Forward Voltage (Amber)

VF

IF = 20mA

1.7



2.2

V

Capacitance (Blue)

C

Vf = 0V, f = 1MHz



110



pF

Capacitance (Amber)

C

Vf = 0V, f = 1MHz



35



pF

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength (Blue)

lD

IF = 20mA

465



475

nm

Dominant Wavelength (Amber)

lD

IF = 20mA

588



592

nm

Viewing Angle

2q1/2

IF = 20mA



120



Deg.

Luminous Intensity (Blue)

IV

IF = 20mA



300



mcd

Luminous Intensity (Amber)

IV

IF = 20mA



250



mcd

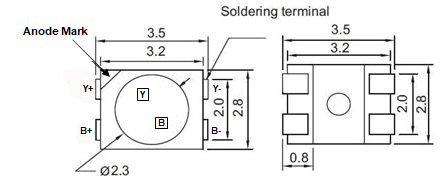

DEVICE DIAGRAM



A-B


LC LED Corporation
