LC LED-Q751TB4D: 4-PIN Blue LED Lamps With 5mm Lens

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(5)  Sun Light Viewable

(2) 5mm Round Water Clear Len

(6)  Rugged design suitable for both indoor & outdoor use

(3) Moisture & UV Resistance Epoxy



(4) Bin Sorted By Color, Intensity & Vf







Electro-optical Characteristics (Ta = 250C)

PART NUMBER

COLOR


VIEWING
ANGLE


THERMAL
RESISTANCE



CAPACITANCE

Peak
Wavelength

VF  (V)

LUMINOUS
INTENSITY (mcd)







(0C/W)

(pF) F = 1MHZ

(nm)

TYP.

MAX.

Typ.

Max.

LC LED-Q751TW4D

White

50

130

1900

X = 0.31
y = 0.32

3.2

3.8

5,000

6,500

LC LED-Q751TB4D

Blue

50

130

1900

465

3.2

3.8

2,500

4,100

LC LED-Q751TG4D

Green

50

130

1900

525

3.2

3.8

4,000

6,800

LC LED-Q751TE4D

Traffic Green

50

130

1900

505

3.2

3.8

4,000

6,800

LC LED-Q751JPF4D

Red

50

125

40

630

2.0

3.1

4,500

6,300

LC LED-Q751JPT4D

Amber

50

125

40

590

1.95

2.8

4,300

5,300





Absolute Maximum Rating (Ta = 250C)

PARAMETER

WHITE

RED & AMBER

BLUE, GREEN & TRAFFIC GREEN

UNITS

DC Forward Current

20

50

30

mA

Peak Pulse Forward Current (1)

50

100

100

mA

Reverse Voltage (IR = 10mA)

5

5

5

VR

Operating Temperature

-40 to +100

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds (1.0mm or 0.63 inch from Body)



(1) Pulse Conditions of 1/10 duty cycle and 10msec max. width

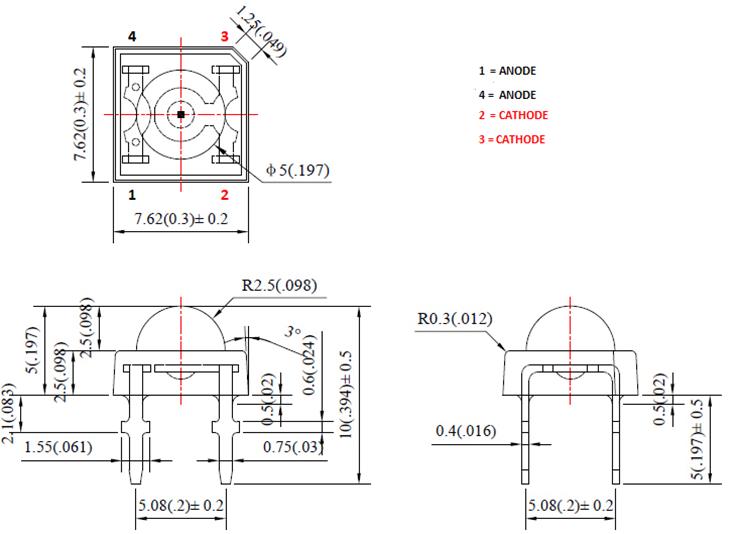

DEVICE DRAWING

4-pin-5mm-len

LC LED Corporation
