LC LED-N500TRY4D: 5mm Super Red & Yellow Bicolor LED Lamp

LC LED T1 5mm Red and Yellow 30 Degree Clear LED Lamp

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Moisture & UV Resistance Epoxy Len

(2) Super Bright Bi-Color 5mm Red & Yellow LED Lamp

(5) Sun Light Viewable LED Lamp

(3) Excellent color mixing characteristics

(6) Rugged design suitable for both indoor & outdoor use





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current

30

mA

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1)     Pulse conditions of 1/10 duty and 10msec width; for long operating life, max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage (Red)

VF

IF = 20mA

1.8



2.1

V

Forward Voltage (Yellow)

VF

IF = 20mA

1.8



2.1

V

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength (Red)

lD

IF = 20mA

635



645

nm

Dominant Wavelength (Yellow)

lD

IF = 20mA

589



592

nm

Viewing Angle

2q1/2

IF = 20mA



30



Deg.

Luminous Intensity (Red)

IV

IF = 20mA

3,000



5,000

mcd

Luminous Intensity (Yellow)

IV

IF = 20mA

3,000



5,000

mcd

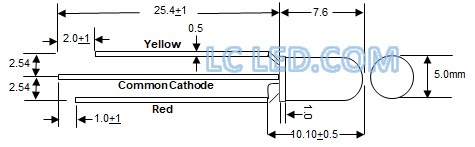

DEVICE DRAWING




LC LED Corporation
