LC LED-N500TGY2H: 5mm 2-Lead Green and Yellow Bicolor Diffused LED Lamp

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Moisture & UV Resistance Epoxy Len

(2) Super Bright Bi-Color 5mm Green & Yellow LED Lamp

(5)  Sun Light Viewable LED Lamp

(3) Excellent color mixing characteristics

(6)  Rugged design suitable for both indoor & outdoor use





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current

30

mA

Operating Temperature

-25 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1)     Pulse width of 1/10 duty cycle and 10msec max. width and for long operating life recommended max. of 20mA





Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage (Yellow)

VF

IF = 20mA

1.8



2.1

V

Forward Voltage (Green)

VF

IF = 20mA

3.0



3.8

V

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength (Yellow)

lD

IF = 20mA

587



592

nm

Dominant Wavelength (Green)

lD

IF = 20mA

520



535

nm

Viewing Angle

2q1/2

IF = 20mA



75



Deg.

Luminous Intensity (Yellow)

IV

IF = 20mA

2,000



4,000

mcd

Luminous Intensity (Green)

IV

IF = 20mA

3,000



4,000

mcd

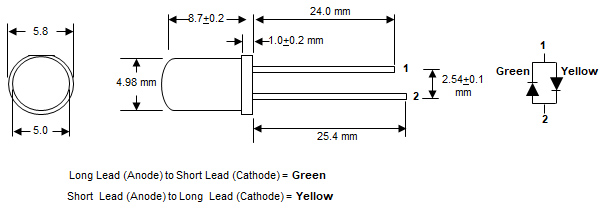

DEVICE DRAWING






LC LED Corporation
