LC LED-N300TWY4D: 3mm Bicolor White & Yellow LED Lamp

LC LED T1 3mm White and Yellow LED Lamp Clear (30 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Sun Light Viewable LED Lamp

(2) Super Bright 3mm White & Yellow LED Lamp

(5) Rugged design suitable for both indoor & outdoor use

(3) Moisture & UV Resistance Epoxy Len





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current

30

mA

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1) Pulse width of 1/10 duty and 10msec max. width, for long operating life, max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage (White)

VF (White)

IF = 20mA

3.0



3.8

V

Forward Voltage (Yellow)

VF (Yellow)

IF = 20mA

1.7



2.1

V

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength (White)

lD

IF = 20mA



8000



K

Dominant Wavelength (Yellow)

lD

IF = 20mA

590



595

nm

Viewing Angle

2q1/2

IF = 20mA



30



Deg.

Luminous Intensity (White)

IV

IF = 20mA

4,000



8,000

mcd

Luminous Intensity (Yellow)

IV

IF = 20mA

2,500



5,000

mcd

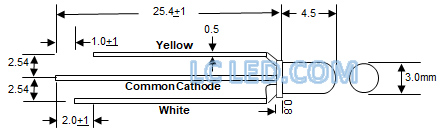

DEVICE DRAWING






LC LED Corporation
