LC LED-N300TRY4D:  3mm Red & Yellow Bicolor LED Lamp

LC LED T1 3mm Red and Yellow LED Lamp (30 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Moisture & UV Resistance Epoxy Len

(2) Super Bright Bi-Color 3mm Red & Yellow LED Lamp

(5)  Sun Light Viewable LED Lamp

(3) Excellent color mixing characteristics

(6)  Rugged design suitable for both indoor & outdoor use





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current

30

mA

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +85

0C

Lead Soldering Temperature

2600C for 3 seconds
(4.0mm or 0.157 inch from Body)

(1)     Pulse width of 1/10 duty and 10msec width, for long operating life, max. of 20mA recommended



Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage (Red)

VF

IF = 20mA

1.7



2.1

V

Forward Voltage (Yellow)

VF

IF = 20mA

1.7



2.1

V

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength (Red)

lD

IF = 20mA

625



635

nm

Dominant Wavelength (Yellow)

lD

IF = 20mA

589



592

nm

Viewing Angle

2q1/2

IF = 20mA



30



Deg.

Luminous Intensity (Red)

IV

IF = 20mA

2,000



4,500

mcd

Luminous Intensity (Yellow)

IV

IF = 20mA

2,000



4,000

mcd

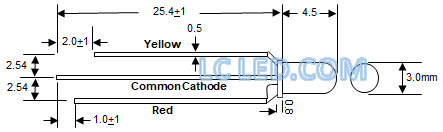

DEVICE DRAWING

Description: Description: Description: Description: C:\..\..\images\blank.gifDescription: Description: Description: Description: C:\..\..\images\red.gif

LC LED Corporation
