LC LED-N300TBR2D: 3mm Blue & Red Diffused Bicolor Lamp

LC LED T1 3mm Blue and Red Diffused LED Lamp

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Moisture & UV Resistance Epoxy Len

(2) Super Bright Bi-Color 3mm Blue & Red LED Lamp

(5)  Sun Light Viewable LED Lamp

(3) Excellent color mixing characteristics

(6)  Rugged design suitable for both indoor & outdoor use





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current

30

mA

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +85

0C

Lead Soldering Temperature

2600C for 3 seconds
(4.0mm or 0.157 inch from Body)

(1)     Pulse width of 1/10 duty and 10msec width, for long operating life, max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage (Blue)

VF (Blue)

IF = 20mA

3.0



3.8

V

Forward Voltage (Red)

VF (Red)

IF = 20mA

1.7



2.3

V

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength (Blue)

lD

IF = 20mA

460



470

nm

Dominant Wavelength (Red)

lD

IF = 20mA

624



635

nm

Viewing Angle

2q1/2

IF = 20mA



75



Deg.

Luminous Intensity (Blue)

IV

IF = 20mA

1,800



4,000

mcd

Luminous Intensity (Red)

IV

IF = 20mA

2,000



4,000

mcd

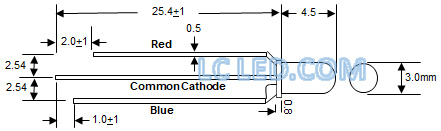

DEVICE DRAWING
