LC LED-M240RGB4D: 2.0mm RGB LED Lamp (110 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Moisture & UV Resistance Epoxy Len

(2) High Intensity Red, Green & Blue LED

(5)  Sun Light Viewable LED Lamp

(3) Excellent color mixing characteristics

(6)  Rugged design suitable for both indoor & outdoor use









PACKAGE DIMENSIONS



Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

20

mA

Peak Pulse Forward Current (1)

50

mA

Reverse Voltage

5

V

Operating Temperature

-20 to +85

0C

Storage Temperature

-30 to +85

0C

Lead Soldering Temperature

2600C for 3 Seconds Max. (2.0mm from Body)

Lead Soldering Temperature

2600C for 5 Seconds Max. (5.0mm from Body)



(1)  Pulse conditions of 1/10 duty and 10msec max. pulse width



Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

DC Forward Voltage (Red)

VF

IF = 20mA

2.0

1.90

2.2

V

DC Forward Voltage (Green)

VF

IF = 20mA

3.0

3.2

3.4

V

DC Forward Voltage (Blue)

VF

IF = 20mA

3.0

3.2

3.3

V

DC Reverse Current

IR

VR = 5V

5

mA

Luminous Intensity (Red)

IV

IF = 20mA



900



mcd

Luminous Intensity (Green)

IV

IF = 20mA



1,000



mcd

Luminous Intensity (Blue)

IV

IF = 20mA



750



mcd

Viewing Angle

2q1/2

IF = 20mA

110

Deg.

Dominant Wavelength (Red)

lD

IF = 20mA



623



nm

Dominant Wavelength (Green)

lD

IF = 20mA



522



nm

Dominant Wavelength (Blue)

lD

IF = 20mA



468



nm

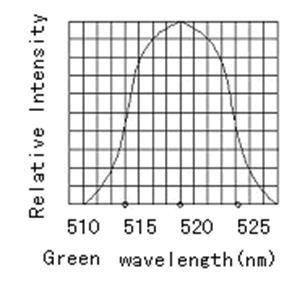

Electro-optical Curve Characteristics

electro-curve

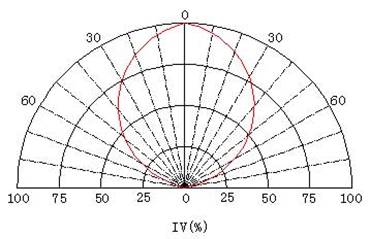

radiation
