LC LED-710JPF4D: 5mm Red Cylindrical Shape Flat Top LED Lamp



LC LED 5mm T1 Special Shape LED Lamp (100 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) High Intensity LED Die Material

(2) 5mm Flat Top LED Lamp in Water Clear Len

(5) Special Colors: White, Blue & Warm White

(3) 5mm Flat Len Designed to Optimize Wide Angle
Viewing for Outdoor Applications

(6) Rugged design suitable for both indoor & outdoor use





Electro-optical Characteristics (Ta = 250C)

PART

DICE MATERIAL

VIEWING

DOMINANT

FORWARD VOLTAGE

LUMINOUS INTENSITY @ 20mA

NUMBER

COLOR

ANGLE (Degree)

WAVELENGTH
(nm)

MIN.
(V)

TYP.
(V)

MIN.
(mcd)

Max.
(mcd)

LC LED-710TSW4D

InGaN White

100

5500K

3.0

3.8

1,000

2,500

LC LED-710TWW4D

Warm White

3300K

3.0

3.8

1,000

2,500

LC LED-710TSB4D

InGaN Blue

465

3.0

3.8

800

1,800

LC LED-710TSG4D

InGaN Green

525

3.0

3.8

1,500

2,500

LC LED-710JPF4D

AlInGaP Red

630

1.8

2.4

1,000

2,350

LC LED-710JPT4D

AlInGaP Yellow

590

1.7

2.4

1,000

2,000





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1) Pulse conditions of 1/10 duty cycle, 10msec max. pulse width

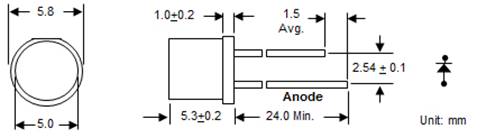

DEVICE DRAWING





LC LED Corporation
