LC LED-525TSG4D: 5mm Green Dome Shape LED Lamp



LC LED 5mm T1 Special Shape LED Lamp (80 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) High Intensity LED Die Material

(2) 5mm Dome Shape LED Lamp in Water Clear Len

(5) Special Colors: White, Blue & Warm White

(3) Unique Conical Radiation Pattern Design Specifically
for Wide Angle Sun Light Viewable Applications

(6) Rugged design suitable for both indoor & outdoor use







Electro-optical Characteristics (Ta = 250C)

PART

DICE MATERIAL

VIEWING

DOMINANT

FORWARD VOLTAGE

LUMINOUS INTENSITY @ 20mA

NUMBER

COLOR

ANGLE (Degree)

WAVELENGTH
(nm)

MIN.
(V)

TYP.
(V)

MIN.
(mcd)

Max.
(mcd)

LC LED-525TSW4D

InGaN White

80

5500K

3.0

3.8

1,250

4,500

LC LED-525TWW4D

InGaN Warm White

3300K

3.0

3.8

1,100

4,300

LC LED-525TSB4D

InGaN Blue

465

3.0

3.8

1,200

3,500

LC LED-525TSG4D

InGaN Green

525

3.0

3.8

2,000

4,000

LC LED-525JPF4D

AlInGaP Red

630

1.8

2.4

2,000

4,800

LC LED-525JPT4D

AlInGaP Amber

590

1.7

2.4

2,000

4,800





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1) Pulse conditions of 1/10 duty cycle, 10msec max. pulse width

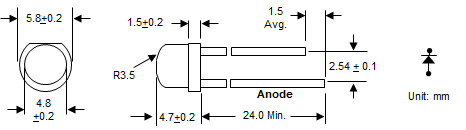

DEVICE DRAWING




LC LED Corporation
