LC LED-525JPT4D:  5mm Dome Super Amber (80 Degree) LED Lamp

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(5)  Sun Light Viewable

(2) Super Bright Amber Wide Angle LED Emitter

(6)  Rugged design suitable for both indoor & outdoor use

(3) Moisture & UV Resistance Epoxy



(4) Bin Sorted By Color, Intensity & Vf







Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

50

mA

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current (Pulse Operation)

30

mA

Operating Temperature

-40 to +100

0C

Storage Temperature

-40 to +120

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1)  Pulse conditions of 1/10 duty cycle, 10msec max. pulse width





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA

1.8



2.4

V

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength

lD

IF = 20mA



590



nm

Viewing Angle

2q1/2

IF = 20mA



80



Deg.

Luminous Intensity

IV

IF = 20mA



3,300



mcd





BIN CODE DISTRIBUTION TABLES

Luminous Intensity( mcd) at 20mA

Bin
Code


Min.


Max.




Vf (V)

1

2,500

3,000



1 = 1.7V-1.9V

2

3,000

3,800



2 = 1.9V-2.1V

3

3,800

4,500



3 = 2.1V-2.3V

4

4,500

5,800



4 = 2.3V-2.5V

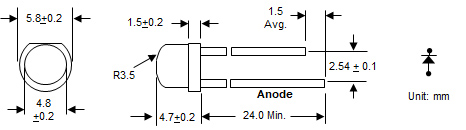

DEVICE DRAWING




LC LED Corporation
