LC LED-500TW4DF: Super White 5mm LED Lamp (60 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part



(2) Super Bright White LED Emitter



(3) Moisture & UV Resistance Epoxy



(4) Bin Sorted By Color, Intensity & Vf







Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current (Pulse Operation)

30

mA

Operating Temperature

-30 to +80

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty cycle and 10msec max. pulse width; for long operating life max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA

3.0



3.8

V

Reverse Voltage

VR

IR = 100mA

5





V

Dominant Wavelength

lD

IF = 20mA



X = 0.29
y = 0.30





Viewing Angle

2q1/2

IF = 20mA



60



Deg.

Luminous Intensity

IV

IF = 20mA



2,000



mcd





INTENSITY BIN lv (mcd)

Bin
Code


Min.


Max.




Vf (V)

1

1,000

1,900



1 = 2.8V-3.2V

2

1,900

2,100



2 = 3.2V-3.4V

3

2,100

2,600



3 = 3.4V-3.6V

4

2,600

3,000





COLOR BIN CB (x,y)

A

3300K

B

5500K

C

8000K

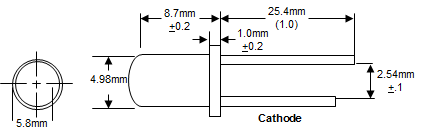

DEVICE DRAWING
