LC LED-500TSW4DF:  Super White 5mm LED (60 Degree) Lamp

PRODUCT DESCRIPTION



(1) RoHs Compliant Part



(2) Super Bright White LED Emitter



(3) Moisture & UV Resistance Epoxy



(4) Bin Sorted By Color, Intensity & Vf







Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Reverse Voltage (IR = 100mA)

5

V

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current (Pulse Operation)

30

mA

Operating Temperature

-40 to +80

0C

Storage Temperature

-40 to +85

0C

(1)  Pulse conditions of 1/10 duty cycle and 10msec max. pulse width; for long operating life max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA

2.8

3.6

V

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength (Kelvin)

lD

IF = 20mA

X = 0.31
y = 0.32

Viewing Angle

2q1/2

IF = 20mA



60



Deg.

Luminous Intensity

IV

IF = 20mA

5,000

8,000

mcd





COLOR / INTENSITY BIN

Bin
Code


Min.


Max.

Intensity Bin Code

1

5,000

8,000







Color Bin Code

A

3,000K-3,500K

B

5000K-7000K

C

7000K-9000K

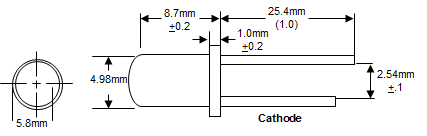

DEVICE DRAWING



Description: Description: Description: Description: C:\images\blank.gifDescription: Description: Description: Description: C:\images\red.gif

LC LED Corporation
