LC LED-500TSW4DA:  5mm Super Pure White LED Lamp (20 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part



(2) Super Bright White LED Emitter



(3) Moisture & UV Resistance Epoxy



(4) Bin Sorted By Color, Intensity & Vf







Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Reverse Voltage (IR = 10mA)

5

V

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current (Pulse Operation)

30

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty cycle and 10msec max. pulse width; for long operating life max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA

3.0

3.3

4.0

V

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength (Kelvin)

lD

IF = 20mA

8000

9000

K

Viewing Angle

2q1/2

IF = 20mA



20



Deg.

Luminous Intensity

IV

IF = 20mA

15,000



20,000

mcd





COLOR & INTENSITY BIN

Bin
Code


Min.


Max.

Intensity Bin Code

1

6,000

7,800

2

9,500

12,500

3

12,500

15,000

4

15,000

20,000

Color Bin Code

A

3,000K-3,500K

B

6000K-7000K

C

8000K-9000K

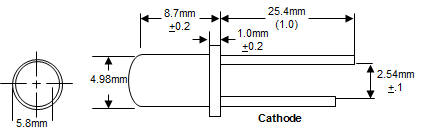

DEVICE DRAWING



Description: Description: C:\images\red.gif

LC LED Corporation
