LC LED-500TSG4DA: High Intensity Green 5mm LED (15 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(5) Sun Light Viewable

(2) Super Bright Green LED Emitter

(6) Rugged design suitable for both indoor & outdoor use

(3) Moisture & UV Resistance Epoxy



(4) Bin Sorted By Color, Intensity & Vf







Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Reverse Voltage

5

V

Power Dissipation

120

mW

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

(1) Pulse conditions of 1/10 duty cycle and 10msec max. pulse width; for long operating life max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA



3.6

4.0

V

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength

lD

IF = 20mA

520



535

nm

Viewing Angle

2q1/2

IF = 20mA



15



Deg.

Luminous Intensity

IV

IF = 20mA



15,000



mcd







INTENSITY BIN

Bin
Code


Min.


Max.

Intensity Bin Code

1

6,000

8,400

2

8,400

12,000

3

12,000

17,000

COLOR BIN CB (x,y)

W1

516 nm 518nm

W2

518 nm 520 nm

W3

520 nm 522 nm

W4

522 nm 525 nm

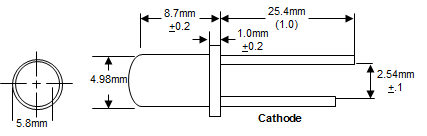

DEVICE DRAWING




LC LED Corporation
