LC LED-500TSG4D: Super Green LED Lamp (30 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(5) Sun Light Viewable

(2) Super Bright Green LED Emitter

(6) Rugged design suitable for both indoor & outdoor use

(3) Moisture & UV Resistance Epoxy



(4) Bin Sorted By Color, Intensity & Vf







Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Reverse Voltage (IR = 10mA)

5

V

Power Dissipation

120

mW

Operating Temperature

-30 to +80

0C

Storage Temperature

-40 to +100

0C

(1) Pulse conditions of 1/10 duty cycle and 10msec max. pulse width; for long operating life max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA



3.6

4.0

V

Reverse Voltage

VR

IR = 10mA





5

V

Dominant Wavelength

lD

IF = 20mA

520



535

nm

Viewing Angle (Half Angle)

q1/2

IF = 20mA



30



Deg.

Luminous Intensity

IV

IF = 20mA



6,500



mcd





INTENSITY BIN

Bin
Code


Min.


Max.

Intensity Bin Code

1

2,600

3,700

2

3,700

5,200

3

5,200

7,500

COLOR BIN CB (x,y)

W1

516 nm 518nm

W2

518 nm 520 nm

W3

520 nm 522 nm

W4

522 nm 525 nm

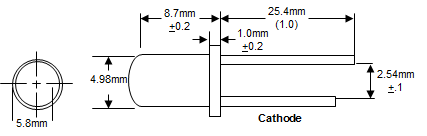

DEVICE DRAWING



LC LED Corporation
