LC LED-500TSB4D: Super Bright Blue (15 Degree) LED Lamp

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(5) Sun Light Viewable

(2) Super Bright Blue LED Emitter

(6) Rugged design suitable for both indoor & outdoor use

(3) Moisture & UV Resistance Epoxy



(4) Bin Sorted By Color, Intensity & Vf







Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Reverse Voltage

5

V

Power Dissipation

120

mW

Operating Temperature

-30 to +80

0C

Storage Temperature

-40 to +100

0C

(1) Pulse conditions of 1/10 duty cycle and 10msec max. pulse width; for long operating life max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA



3.6

3.8

V

Reverse Voltage

VR

IR = 10mA





5

V

Dominant Wavelength

lD

IF = 20mA

464



475

nm

Viewing Angle

2q1/2

IF = 20mA



15



Deg.

Luminous Intensity

IV

IF = 20mA



5,600



mcd





INTENSITY BIN

Bin
Code


Min.


Max.

1

1,400

2,800

2

2,800

3,500

3

3,500

5,700

4

5,700

COLOR BIN CB (x,y)

W1

460 nm 465nm

W2

465 nm 470 nm

W3

470 nm 475 nm

W4

475 nm 480 nm

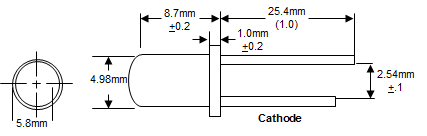

DEVICE DRAWING




LC LED Corporation
