LC LED-500TE4D: Traffic Green 5mm (30 Degree) LED Lamp

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(5) Sun Light Viewable

(2) Super Bright Green LED Emitter

(6) Rugged design suitable for both indoor & outdoor use

(3) Moisture & UV Resistance Epoxy



(4) Bin Sorted By Color, Intensity & Vf







Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current

100

mA

Avg. Forward Current (Pulse Operation)

30

mA

Operating Temperature

-30 to +80

0C

Storage Temperature

-40 to +100

0C





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA



3.6

4.5

V

Reverse Voltage

VR

IR = 100mA

5





V

Dominant Wavelength

lD

IF = 20mA

495

505

515



Viewing Angle

2q1/2

IF = 20mA



30



Deg.

Luminous Intensity

IV

IF = 20mA



4,500



mcd





INTENSITY BIN lv (mcd)

Bin
Code


Min.


Max.




Vf (V)

1

2,500

2,900



1 = 2.8V-3.2V

2

2,900

3,100



2 = 3.2V-3.6V

3

3,100

3,700



3 = 3.4V-3.6V

4

3,700

4,800





COLOR BIN CB (x,y)

W1

495 nm 500nm

W2

500 nm 505 nm

W3

505 nm 510 nm

W4

510 nm 515 nm

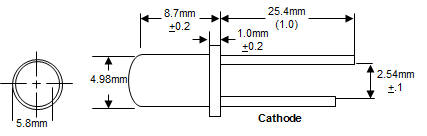

DEVICE DRAWING




LC LED Corporation
