LC LED-300TW4G:  Super White 3mm (30 Degree) LED Lamp

Solder Dipping

Soldering

(1) Pre-Heat: 1000C Max.

(1) 30W Max. Soldering Iron

(2) Pre-Heat Time:  60 seconds

(2) Soldering Temperature: 3000C Max.

(3) Solder Temperature: 2600C Max

(3) Soldering Time:  3 seconds Max.

(4) Dipping Time:  5 Sec. Max. & No closer than 3mm from bulb

(4) No closer than 3mm from base of bulb





Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

20

mA

Peak Pulse Forward Current (1)

100

mA

Reverse Voltage (IR = 10mA)

5

V

Avg. Forward Current (Pulse Operation)

30

mA

Operating Temperature

-30 to +80

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty cycle and 10msec max. width





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA

3.0

3.6

V

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength

lD

IF = 20mA



X = 0.29
y = 0.31





Viewing Angle

2q1/2

IF = 20mA



30



Deg.

Luminous Intensity

IV

IF = 20mA

8,000

10,000

mcd





INTENSITY BIN lv (mcd)

Bin
Code


Min.


Max.




Vf (V)

1

8,000

10,000



1 = 2.8V-3.0V









2 = 3.0V-3.2V

COLOR BIN CB (x,y)



3 = 3.2V-3.4V

M

3000K



4 = 3.4V-3.6V

N

5500K





O

8000K

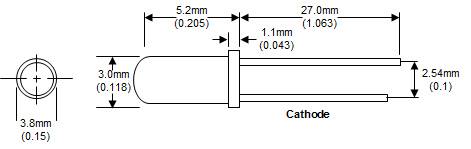

DEVICE DRAWING




LC LED Corporation
