LC LED-300TP4G: 3mm Purple LED Lamp

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(5) Applications including Digital Read-out Lamps

(2) Super Bright Purple LED Emitter

Backlighting, LED Screens, Audio Equipment

(3) Moisture & UV Resistance Epoxy

(6) Spec for 50,000 hrs of operating life





Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current (1)

20

mA

Peak Pulse Forward Current (2)

120

mA

Reverse Voltage (Max.)

5

V

Operating Temperature

-20 to +75

0C

Storage Temperature

-30 to +80

0C

Soldering Temperature

2600C / 3 Seconds

(1)    For long operating life, 10mA-15mA is recommended

(2)     Pulse conditions of 1/10 duty cycle and 10msec max. width,





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA

3.0

3.4

3.5

V

Reverse Current

IR

VR = 5V





5

mA

Emitting Color (3)

Wavelength

IF = 20mA







Viewing Angle

2q1/2

IF = 20mA



30



Deg.

Luminous Intensity

IV

IF = 20mA



1,500



mcd

(3)    Incorporates proprietary InGaN & Phosphor as emitting color

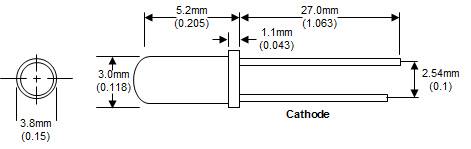

DEVICE DRAWING



LC LED Corporation
