LC LED-300TN4GF: Turquoise (60 Degree) 3mm LED Lamp

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(5)  Sun Light Viewable

(2) Super Bright Turquoise LED Emitter

(6)  Rugged design suitable for both indoor & outdoor use

(3) Moisture & UV Resistance Epoxy



(4) Bin Sorted By Color, Intensity & Vf







Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

20

mA

Reverse Voltage

5

V

Peak Pulse Forward Current (1)

125

mA

Avg. Forward Current (Pulse Operation)

30

mA

Operating Temperature

-25 to +80

0C

Storage Temperature

-30 to +85

0C

(1)  Pulse conditions of 1/10 duty cycle and < 10msec pulse width; for long operating life, max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA

3.0



3.6

V

Reverse Voltage

VR

IR = 10mA





5

V

Dominant Wavelength

lD

IF = 20mA

475

485

nm

Viewing Angle

2q1/2

IF = 20mA



60



Deg.

Luminous Intensity

IV

IF = 20mA

2,000

4,500

mcd

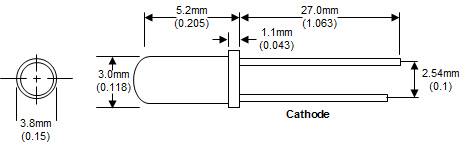

DEVICE DRAWING
