LC LED-300TG4G: 3mm Green LED (30 Degree) Lamp

Solder Dipping

Soldering

(1) Pre-Heat: 1000C Max.

(1) 30W Max. Soldering Iron

(2) Pre-Heat Time: 60 seconds

(2) Soldering Temperature: 3000C Max.

(3) Solder Temperature: 2600C Max

(3) Soldering Time: 3 seconds Max.

(4) Dipping Time: 5 Sec. Max. & No closer than 3mm from bulb

(4) No closer than 3mm from base of bulb





Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

20

mA

Reverse Voltage (IR = 10mA)

5

V

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current (Pulse Operation)

30

mA

Operating Temperature

-30 to +80

0C

Storage Temperature

-40 to +100

0C

(1) Pulse conditions of 1/10 duty cycle and 10msec max. width





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA

3.0

3.6

V

Reverse Voltage

VR

IR = 10mA





5

V

Dominant Wavelength

lD

IF = 20mA

520



530



Viewing Angle

2q1/2

IF = 20mA



30



Deg.

Luminous Intensity

IV

IF = 20mA

8,000

10,000

mcd





INTENSITY BIN lv (mcd)

Bin
Code


Min.


Max.




Vf (V)

1

4,000

6,000



1 = 2.8V-3.0V

2

6,000

8,000



2 = 3.0V-3.4V

3

8,000

10,000



3 = 3.4V-4.0V

4

10,000

12,000





COLOR BIN CB (x,y)

W1

505 nm 510 nm

W2

510 nm 515 nm

W3

515 nm 525 nm

W4

525 nm 532 nm

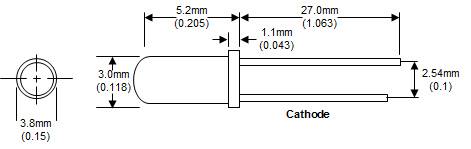

DEVICE DRAWING



LC LED Corporation
