LC LED-300TB4GF: Super Blue (60 Degree) LED Lamp

Solder Dipping

Soldering

(1) Pre-Heat: 1000C Max.

(1) 30W Max. Soldering Iron

(2) Pre-Heat Time: 60 seconds

(2) Soldering Temperature: 3000C Max.

(3) Solder Temperature: 2600C Max

(3) Soldering Time: 3 seconds Max.

(4) Dipping Time: 5 Sec. Max. & No closer than 3mm from bulb

(4) No closer than 3mm from base of bulb





Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

20

mA

Reverse Voltage (IR = 10mA)

5

V

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current (Pulse Operation)

30

mA

Operating Temperature

-30 to +80

0C

Storage Temperature

-40 to +100

0C

(1) Pulse conditions of 1/10 duty cycle and 10msec max. width





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA

3.0

3.6

V

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength

lD

IF = 20mA

465

470

475

nm

Viewing Angle

2q1/2

IF = 20mA



60



Deg.

Luminous Intensity

IV

IF = 20mA



2,500



mcd







INTENSITY BIN lv (mcd)

Bin
Code


Min.


Max.




Vf (V)

1

2,000

2,500



1 = 2.8V-3.0V

2

2,500

3,000



2 = 3.0V-3.2V

3

3,000

3,500



3 = 3.2V-3.4V

4

3,500

4,000



4 = 3.4V-3.6V











COLOR BIN CB (x,y)

W1

460 nm 465nm

W2

465 nm 470 nm

W3

470 nm 475 nm

W4

475 nm 480 nm

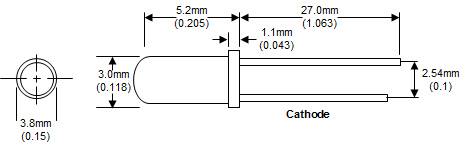

DEVICE DIAGRAM
