LC LED-300JPT4G: 3mm Amber LED (30 Degree) Lamp

Solder Dipping

Soldering

(1) Pre-Heat: 1000C Max.

(1) 30W Max. Soldering Iron

(2) Pre-Heat Time: 60 seconds

(2) Soldering Temperature: 3000C Max.

(3) Solder Temperature: 2600C Max

(3) Soldering Time: 3 seconds Max.

(4) Dipping Time: 5 Sec. Max. & No closer than 3mm from bulb

(4) No closer than 3mm from base of bulb





Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

20

mA

Reverse Voltage (IR = 10mA)

5

V

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current (Pulse Operation)

30

mA

Operating Temperature

-30 to +80

0C

Storage Temperature

-40 to +100

0C

(1) Pulse conditions of 1/10 duty cycle and 10msec max. width





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA

1.7

2.3

V

Reverse Voltage

VR

IR = 10mA





5

V

Dominant Wavelength

lD

IF = 20mA

590



Viewing Angle

2q1/2

IF = 20mA



30



Deg.

Luminous Intensity

IV

IF = 20mA

5,000

7,000

mcd





INTENSITY BIN lv (mcd)

Bin
Code


Min.


Max.




Vf (V)

1

3,500

4,500



1 = 1.7V-1.9V

2

4,500

5,500



2 = 1.9V-2.1V

3

5,500

6,250



3 = 2.1V-2.3V

4

6,250

7,500





COLOR BIN CB (x,y)

W1

589 nm 591 nm

W2

591 nm 593 nm

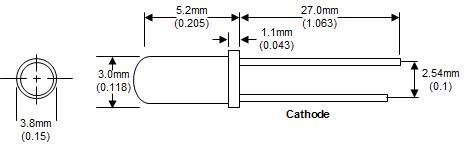

DEVICE DRAWING



LC LED Corporation
